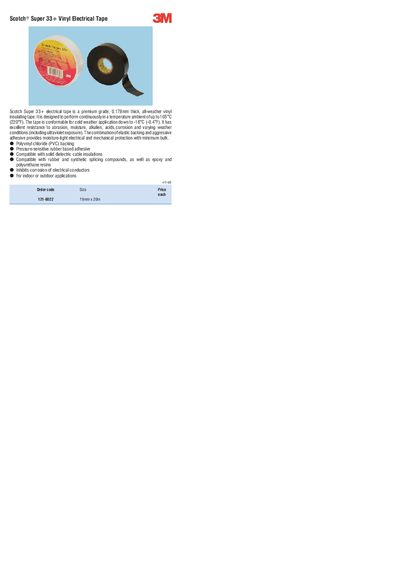

3M Order code Size Price each 131-6022 19mm x 20m
Scotch Super 33+ electrical tape is a premium‑grade, 0.178 mm thick, all‑weather vinyl insulating tape. It is designed for continuous operation in ambient temperatures up to 105 °C (220 °F) and can be applied in cold weather down to -18 °C (-0.4 °F). The tape combines a PVC backing with a pressure‑sensitive rubber adhesive, providing moisture‑tight electrical and mechanical protection while remaining conformable.
The product is compatible with solid dielectric cable insulations, rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins. It inhibits corrosion of electrical conductors and is suitable for both indoor and outdoor applications. The standard order code for a 19 mm × 20 m roll is 131‑6022.
3M Super 33+ specifications
| Thickness | 0.178 mm |
|---|---|
| Maximum Operating Temperature | 105 °C |
| Minimum Operating Temperature | -18 °C |
| Backing Material | Polyvinyl chloride (PVC) |
| Adhesive Type | Pressure‑sensitive rubber based |
| Compatibility – Cable Insulations | Solid dielectric |
| Compatibility – Splicing Compounds | Rubber and synthetic |
| Corrosion Inhibition | Inhibits corrosion of conductors |
| Application Environment | Indoor or outdoor |
| Order Code | 131‑6022 (19 mm × 20 m) |
All 3M Super 33+ documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How thick is the Scotch Super 33+ tape?
The tape is 0.178 mm thick.
What materials is the tape compatible with?
It works with solid dielectric cable insulations, rubber and synthetic splicing compounds, as well as epoxy and polyurethane resins.
What should be done if the tape gets in the eyes?
Flush eyes with large amounts of water and seek medical attention if symptoms persist.
From: 3M Super 33+ and Super 88 Vinyl Electrical Tape Material Safety Data Sheet
Which fire extinguishing media are suitable for this product?
Use class B extinguishing agents such as dry chemical or carbon dioxide.
From: 3M Super 33+ and Super 88 Vinyl Electrical Tape Material Safety Data Sheet
What is the voltage rating of Super 33+ tape?
It is rated for primary electrical insulation of up to 600 V for wire and cable splices.
