Start here

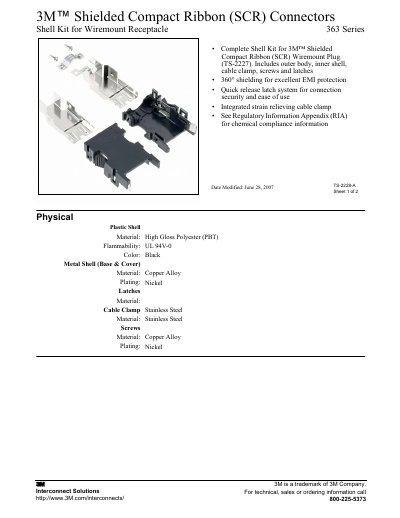

3M 363 Series Shielded Compact Ribbon (SCR) Connectors Shell Kit Handbook
The handbook describes the complete shell kit for the 3M Shielded Compact Ribbon (SCR) Wiremount Plug, including the outer body, inner shell, cable clamp, screws and latches. The kit offers 360° shielding for EMI protection and a quick‑release latch system.
It also lists ordering dimensions, compatible cable diameters (7.0 mm‑9.0 mm), and regulatory information such as EU and China RoHS compliance. Warranty coverage of one year from purchase is included. This manual is written in Chinese.
3M 363 Series specifications
| Plastic shell material | High Gloss Polyester (PBT) |
|---|---|
| Flammability rating | UL 94V-0 |
| Shell color | Black |
| Metal shell material | Copper Alloy |
| Plating | Nickel |
| Latch material | Stainless Steel |
| Screw material | Copper Alloy |
| Compatible cable overall diameter | 7.0 mm – 9.0 mm |
Source: 3M 363 Series Shielded Compact Ribbon (SCR) Connectors Shell Kit Handbook
All 3M 363 Series documents by type
Questions answered in these manuals
What cable diameter is compatible with the 363 Series SCR connector kit?
The kit is compatible with cables having an overall diameter of 7.0 mm to 9.0 mm.
From: 3M 363 Series Shielded Compact Ribbon (SCR) Connectors Shell Kit Handbook
Is the 363 Series SCR connector kit RoHS compliant?
Yes, the product is RoHS compliant according to EU Directive 2002/95/EC.
From: 3M 363 Series Shielded Compact Ribbon (SCR) Connectors Shell Kit Handbook
