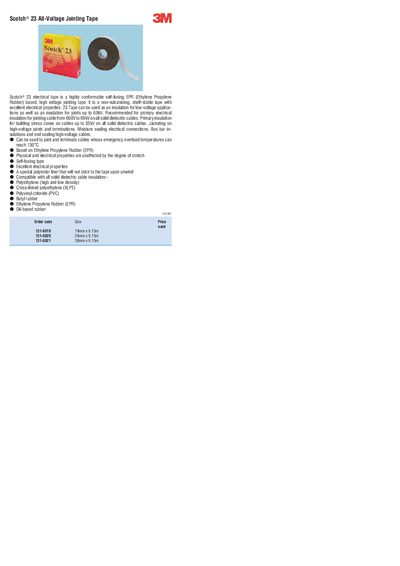

Scotch� 23 is a self-fusing EPR-based high voltage jointing tape from 3M. It is suitable for low voltage applications and joints up to 69 kV.
Scotch® 23 electrical tape is a highly conformable self‑fusing EPR (Ethylene Propylene Rubber) based, high‑voltage jointing tape. It provides excellent electrical properties and can be used for insulation of low‑voltage applications as well as joints up to 69 kV, and for primary insulation of cables from 600 V to 69 kV.
The tape is supplied in three sizes: 19 mm × 9.15 m (order code 131‑6019), 25 mm × 9.15 m (order code 131‑6020) and 38 mm × 9.15 m (order code 131‑6021). It is compatible with all solid dielectric cable insulations, including polyethylene, XLPE, PVC, butyl rubber, EPR and oil‑based rubber.
| Tape type | Self‑fusing EPR tape |
|---|---|
| Material | Ethylene Propylene Rubber (EPR) |
| Maximum operating temperature | 130 °C |
| Maximum voltage rating | 69 kV |
| Compatible cable insulations | Polyethylene, XLPE, PVC, Butyl rubber, EPR, Oil‑based rubber |
| Size 1 | 19 mm × 9.15 m (order code 131‑6019) |
| Size 2 | 25 mm × 9.15 m (order code 131‑6020) |
| Size 3 | 38 mm × 9.15 m (order code 131‑6021) |
Scotch 23 tape can be used at temperatures up to 130 °C.
The tape is rated for jointing applications up to 69 kV.
It works with polyethylene, cross‑linked polyethylene (XLPE), PVC, butyl rubber, EPR and oil‑based rubber.
It is offered in 19 mm × 9.15 m (131‑6019), 25 mm × 9.15 m (131‑6020) and 38 mm × 9.15 m (131‑6021).
