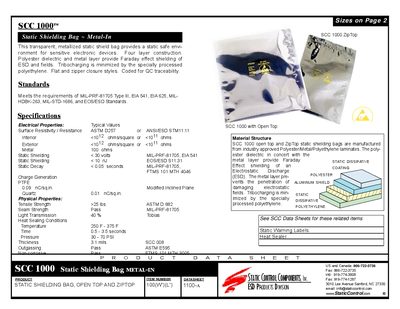

Static Control Components SCC 1000 Static Shielding Bag Datasheet
The SCC 1000 is a transparent, metallized static shielding bag designed to provide a static‑safe environment for sensitive electronic devices. It features a four‑layer construction of polyester dielectric, metal foil, and specially processed polyethylene to minimize tribocharging and achieve Faraday shielding.
The bags meet multiple ESD and military standards (MIL‑PRF‑81705 Type III, EIA 541, EIA 625, MIL‑HDBK‑263, MIL‑STD‑1686, EOS/ESD) and are available in a wide range of sizes with open‑top or zip‑top closures. Technical specifications such as surface resistivity, thickness, and temperature tolerance are detailed in the sheet.
3M SCC 1000 specifications
| Interior Surface Resistivity | <10^12 Ω/square or <10^11 Ω |
|---|---|
| Exterior Surface Resistivity | <10^12 Ω/square or <10 Ω |
| Thickness | 3.1 mils |
| Light Transmission | 40 % |
| Operating Temperature | 250 °F – 375 °F |
| Pressure Rating | 30 – 70 psi |
| Tensile Strength | >25 lbs |
Source: Static Control Components SCC 1000 Static Shielding Bag Datasheet
All 3M SCC 1000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What standards does the SCC 1000 bag meet?
It meets MIL‑PRF‑81705 Type III, EIA 541, EIA 625, MIL‑HDBK‑263, MIL‑STD‑1686, and EOS/ESD standards.
From: Static Control Components SCC 1000 Static Shielding Bag Datasheet
What is the surface resistivity of the SCC 1000 bag?
The interior surface resistivity is less than 10^12 Ω/square (or <10^11 Ω), and the exterior is less than 10^12 Ω/square (or <10 Ω).
From: Static Control Components SCC 1000 Static Shielding Bag Datasheet
What standards does the SCC 1000 bag meet?
It meets Mil‑p RF‑81705 type III, EIA 541, EIA 625, Mil‑HDB K‑263, Mil‑Std‑1686, and EOS/ESD S11.31 standards.
What is the construction of the SCC 1000 static shielding bag?
It uses a four‑layer laminate of polyester dielectric, a metal layer, and specially processed polyethylene to provide Faraday‑effect shielding.
