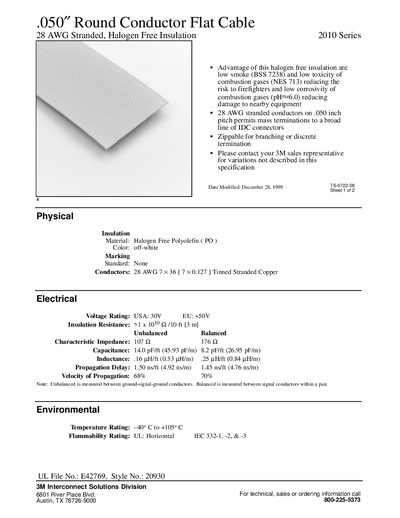

3M 2010 Series .050" Round Conductor Flat Cable Datasheet
The .050" round conductor flat cable from 3M’s 2010 Series features 28 AWG stranded, tinned copper conductors with halogen‑free polyolefin insulation, offering low smoke and low toxicity in case of fire. The cable is designed for mass terminations to a broad line of IDC connectors and is available in standard roll lengths of 100 ft or 300 ft.
Technical data include a 30 V (USA) / <50 V (EU) voltage rating, insulation resistance greater than 1 × 10⁹ Ω/10 ft, and a temperature range of –40 °C to +105 °C. Ordering information and dimensional tables are provided for various conductor counts and widths.
3M 2010 Series specifications
| Conductor size | 28 AWG 7 × 36 (7 × 0.127 mm) tinned stranded copper |
|---|---|
| Insulation material | Halogen Free Polyolefin (PO) |
| Color | off‑white |
| Voltage rating | USA: 30 V, EU: <50 V |
| Insulation resistance | >1 × 10⁹ Ω /10 ft |
| Capacitance | 14.0 pF/ft (45.93 pF/m) |
| Inductance | 0.16 µH/ft – 0.25 µH/ft |
| Propagation delay | 1.50 ns/ft (4.92 ns/m) |
| Velocity of propagation | 68 % |
| Temperature rating | -40 °C to +105 °C |
| Flammability rating | UL Horizontal IEC 332‑1,‑2,‑3 |
Source: 3M 2010 Series .050" Round Conductor Flat Cable Datasheet
