Start here

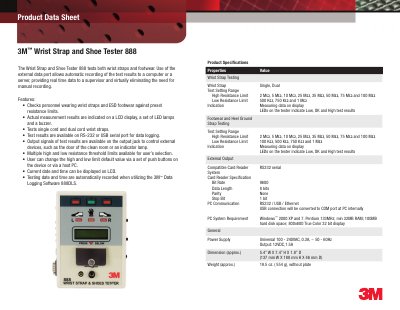

3M 888 Wrist Strap and Shoe Tester Product Data Sheet
The 3M™ Wrist Strap and Shoe Tester 888 is designed to test both wrist straps and ESD footwear against preset resistance limits. It features an LCD display, LED indicators, and a buzzer to show Low, OK, or High results for single or dual cord setups.
Read online3M 888 specifications
| Wrist Strap Test Setting Range (High) | 2 MΩ, 5 MΩ, 10 MΩ, 25 MΩ, 35 MΩ, 50 MΩ, 75 MΩ and 100 MΩ |
|---|---|
| Wrist Strap Test Setting Range (Low) | 500 KΩ, 750 KΩ and 1 MΩ |
| Footwear Test Setting Range (High) | 2 MΩ, 5 MΩ, 10 MΩ, 25 MΩ, 35 MΩ, 50 MΩ, 75 MΩ and 100 MΩ |
| Footwear Test Setting Range (Low) | 100 KΩ, 500 KΩ, 750 KΩ and 1 MΩ |
| Bit Rate (RS232) | 9600 |
| Power Supply Input | Universal 100 - 240VAC, 0.3A, ~ 50 - 60Hz |
| Output Voltage/Current | 12VDC, 1.5A |
| Dimensions (approx.) | 5.4” W X 7.4” H X 1.8” D |
Source: 3M 888 Wrist Strap and Shoe Tester Product Data Sheet
All 3M 888 documents by type
Questions answered in these manuals
What types of wrist straps can the tester check?
The device checks personnel wearing single cord and dual cord wrist straps.
How are test results indicated on the device?
Actual measurement results are shown on an LCD display, a set of LED lamps, and a buzzer indicating Low, OK, or High.
Is respiratory protection required for normal use?
No, under normal use conditions, airborne exposures are not expected to be significant enough to require respiratory protection.
From: 3M 9888T Double Coated Tissue Tape Material Safety Data Sheet
What is the recommended disposal method?
Reclaim the product if feasible; otherwise, dispose of it in a sanitary landfill or incinerate it in an industrial, commercial, or municipal incinerator.
From: 3M 9888T Double Coated Tissue Tape Material Safety Data Sheet
