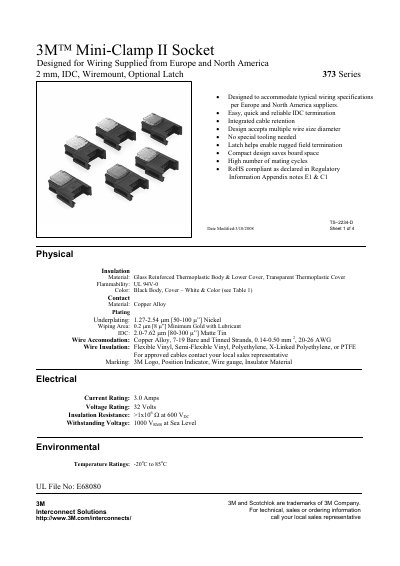

3M 373 Series Mini-Clamp II Socket Specification Sheet
The 3M Mini‑Clamp II Socket 2 mm IDC connector is designed for wire‑mount applications with an optional latch. It uses a glass‑reinforced thermoplastic body and a transparent thermoplastic cover, and its contacts are copper‑alloy plated with nickel and a thin gold layer for reliable conductivity.
The socket is rated for 3 A continuous current and 32 V, with an insulation resistance greater than 1 MΩ at 600 VDC and a withstanding voltage of 1000 V RMS. It operates from –20 °C to 85 °C, complies with UL 94V‑0 flammability, and meets RoHS requirements. Ordering information and dimensional data are provided for various wire sizes. This manual is written in Chinese.
3M 373 Series specifications
| Physical Insulation Material | Glass Reinforced Thermoplastic Body & Lower Cover, Transparent Thermoplastic Cover |
|---|---|
| Contact Material | Copper Alloy Plating |
| Electrical Current Rating | 3.0 Amps |
| Voltage Rating | 32 Volts |
| Insulation Resistance | >1 × 10⁶ Ω at 600 VDC |
| Withstanding Voltage | 1000 V RMS at Sea Level |
| Environmental Temperature Range | -20 °C to 85 °C |
| Flammability | UL 94V‑0 |
Source: 3M 373 Series Mini-Clamp II Socket Specification Sheet
All 3M 373 Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the current rating of the 3M 373 Series Mini‑Clamp II Socket?
It is rated for a continuous current of 3 A.
From: 3M 373 Series Mini-Clamp II Socket Specification Sheet
What voltage can the socket withstand?
The socket can withstand up to 1000 V RMS at sea level.
From: 3M 373 Series Mini-Clamp II Socket Specification Sheet
What is the current rating of the 3M Mini-Clamp Socket 373 Series?
The socket is rated for a continuous current of 3.0 A.
What temperature range can the socket operate in?
It can operate from –20 °C up to 85 °C.
