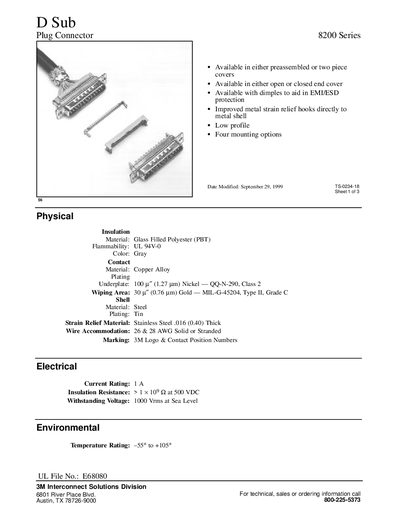

3M 8200 Series D Sub Plug Connector Datasheet
The 8200 Series D Sub plug connector from 3M is offered in pre‑assembled or two‑piece covers, with open or closed end options and dimples for EMI/ESD protection. It features low‑profile design, four mounting styles, and improved metal strain‑relief hooks directly attached to the metal shell.
The sheet provides detailed physical, electrical and environmental specifications, including material composition, plating, current rating, insulation resistance, withstanding voltage, and temperature range, as well as contact dimensions and ordering information for various cover and pin configurations.
3M 8200 Series specifications
| Insulation Material | Glass Filled Polyester (PBT) |
|---|---|
| Flammability Rating | UL 94V‑0 |
| Color | Gray |
| Contact Material | Beryllium Copper |
| Shell Material | Steel |
| UL File No. | E68080 |
| CSA File No. | LR 40971 |
