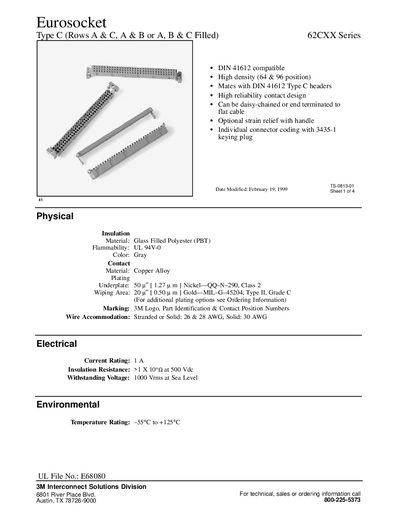

3M - 3M Interconnect Solutions Division 6801 River Place Blvd. Austin TX 78726-9000 For technical sales(2)
The 62CXX Series Eurosocket from 3M is a high‑density connector compatible with DIN 41612 Type C headers. It offers 64 or 96 positions and can be daisy‑chained or end‑terminated to flat cable. Optional strain‑relief handles and keying plugs provide additional customization.
The datasheet lists physical, electrical and environmental characteristics, including material construction, plating options, current rating, insulation resistance, withstanding voltage, temperature range, and detailed dimensional data for mounting and keying. Ordering information and optional features such as mounting flanges and strain‑relief parts are also provided.
3M 62CXX Series specifications
| Connector type | Type C (Rows A & C, A & B, B & C Filled) |
|---|---|
| Positions | High density (64 & 96 position) |
| Insulation material | Glass Filled Polyester (PBT) |
| Contact material | Copper Alloy |
| Contact plating | Nickel—QQ-N-290, Class 2; Gold—MIL-G-45204, Type II, Grade C |
| Contact plating (gold) | Gold—MIL-G-45204, Type II, Grade C |
| Insulation resistance | >1 × 10¹² Ω at 500 Vdc |
| Withstanding voltage | 1000 Vrms at sea level |
| Temperature rating | 55 °C to +125 °C |
| Minimum post spacing | 7.62 mm between adjacent groups of posts |
| Nominal post pattern | 0.70 × 0.60 mm or 0.63 × 0.63 mm |
All 3M 62CXX Series documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What plating options are available for the contacts?
Contact plating options include Nickel (QQ‑N‑290, Class 2) and Gold (MIL‑G‑45204, Type II, Grade C).
What temperature range can the connector operate in?
The connector can operate from 55 °C up to +125 °C.
What is the current rating of the 62CXX Series connector?
The connector is rated for a current of 1 A.
What temperature range can the 62CXX Series operate in?
It can operate from –55 °C up to +125 °C.
