Start here

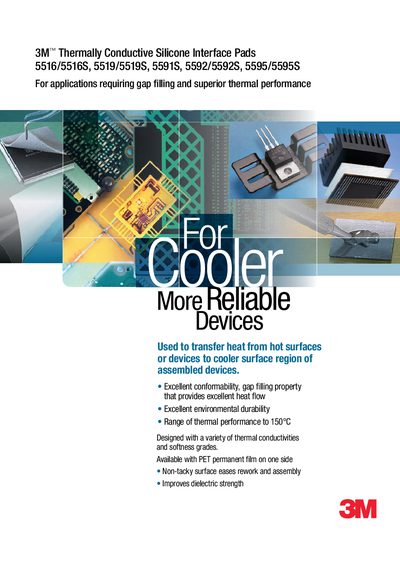

3M 5516/5516S, 5519/5519S, 5591S, 5592/5592S, 5595/5595S Thermally Conductive Silicone Interface Pads Product Data Sheet
The 3M Thermally Conductive Silicone Interface Pads are designed to transfer heat from hot components to cooler surfaces. They offer excellent conformability, gap‑filling capability, and environmental durability, with thermal performance up to 150 °C. Some versions include a PET permanent film on one side, giving a non‑tacky surface that eases rework and improves dielectric strength.
A selection guide lists the various part numbers (5516, 5516S, 5519, 5519S, 5591S, 5592, 5592S, 5595, 5595S) together with key specifications such as thermal conductivity, Shore hardness, thickness options, and operating temperature limits. The document also contains warranty, liability, and contact information for 3M Electronics Markets Materials Division.
3M 5516S specifications
| Shore 00 Hardness – Model 5519 | 80 |
|---|---|
| Maximum Short‑Term Operating Temperature | 150 °C |
| Maximum Long‑Term Operating Temperature | 100‑125 °C |
All 3M 5516S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the purpose of the PET film on the S versions of the pads?
The PET film provides a non‑tacky surface that eases rework and assembly and improves dielectric strength.
What is the maximum temperature these pads can operate at?
The pads are rated for continuous operation up to 150 °C.
What is the thermal conductivity of the 5516/5516S pads?
The pads have a thermal conductivity of 3.1 W/mK.
From: 3M 5516/5516S Hyper Soft Thermally Conductive Interface Pads Technical Data
Are the pads flame‑retardant?
Yes, they meet UL 94 V‑0 flammability rating.
From: 3M 5516/5516S Hyper Soft Thermally Conductive Interface Pads Technical Data
