Key facts
- Brand
- 3M
- Model
- 23M
- Category
- Other Electronics
- Documents
- 2
- Languages
- EN
- Last added
- 2012-04-09
Start here

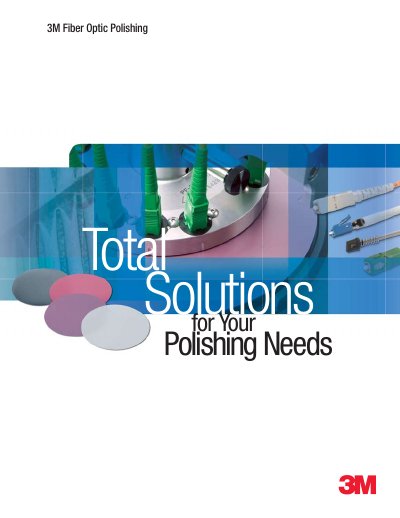

3M 33M Fiber Optic Polishing Solutions Manual
This guide presents 3M's complete fiber‑optic connector polishing portfolio, including 33M and 23M lapping films, a range of diamond lapping films (661X, 668X, 661XU, 662XW, etc.), and final‑polish products. Each film is described by mineral type, micron grade, and optional pressure‑sensitive adhesive (PSA) backing.
The document also provides a selection guide that matches connector types to recommended film steps, detailed polishing time and pressure tables, and information on the Novec™ contact cleaner for connector cleaning. Technical service contact details and warranty notices are included at the end.
3M 23M specifications
| Micron grades available | 0.05 – 30 µm |
|---|---|
| PSA backing option | With or without pressure‑sensitive adhesive |
| Maximum film width | 12 inches |
| Backreflection performance (final polish) | 55‑63 dB |
All 3M 23M documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How can I contact 3M for technical assistance?
Call the Fiber Optics Applications Laboratory at 1‑866‑866‑0922 or visit www.3M.com/electronics.
What belt sizes are available for the 3M general purpose linisher belts?
The belts are offered in 25 × 1065 mm, 50 × 1525 mm, and 100 × 915 mm.
What is the order code for the 3M general purpose linisher belts?
The order code listed is 149‑5856.
