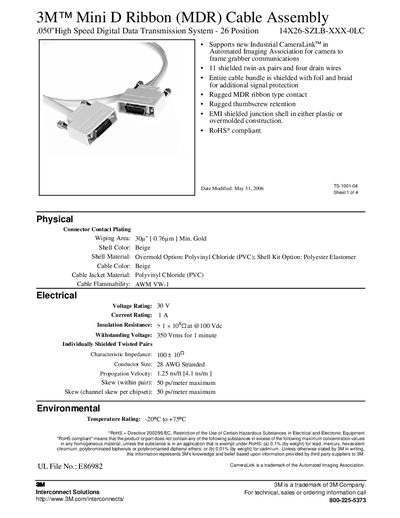

3M Mini D Ribbon (MDR) Cable Assembly .050"High Speed Digital Data Transmission System - 26 Position 14X26-SZLB-XXX-0LC
The Mini D Ribbon (MDR) Cable Assembly from 3M provides a high‑speed digital data transmission system for 26‑position CameraLink connectors. It features a rugged MDR ribbon‑type contact, thumbscrew retention, and EMI shielding with foil and braid.
Key specifications include a 30 V voltage rating, 1 A current rating, 100 Ω ±10 Ω characteristic impedance, and operation over a temperature range of –20 °C to +75 °C. The cable is RoHS‑compliant, uses a PVC jacket and overmolded shell, and offers various length options from 0.5 m to 10 m.
3M 14X26-SZLB-XXX-0LC specifications
| Voltage Rating | 30 V |
|---|---|
| Current Rating | 1 A |
| Insulation Resistance | > 1 × 10⁸ Ω at 100 Vdc |
| Withstanding Voltage | 350 Vrms for 1 minute |
| Characteristic Impedance | 100 Ω ± 10 Ω |
| Conductor Size | 28 AWG |
| Propagation Velocity | 1.25 ns/ft (4.1 ns/m) |
| Skew (within pair) | 50 ps/meter maximum |
| Temperature Rating | -20 °C to +75 °C |
| Cable Jacket Material | Polyvinyl Chloride (PVC) |
| Cable Color | Beige |
| Shell Color | Beige |
All 3M 14X26-SZLB-XXX-0LC documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the voltage rating of the 3M MDR Cable Assembly?
The cable is rated for 30 V.
What is the characteristic impedance of the cable?
The characteristic impedance is 100 Ω ± 10 Ω.
What is the voltage rating of the 14X26-SZLB-XXX-OLC cable assembly?
The cable assembly is rated for 30 V.
From: 3M 14X26-SZLB XXX-0LC
How many shielded twin‑ax pairs does the cable have?
It contains 11 shielded twin‑ax pairs and four drain wires.
From: 3M 14X26-SZLB XXX-0LC
