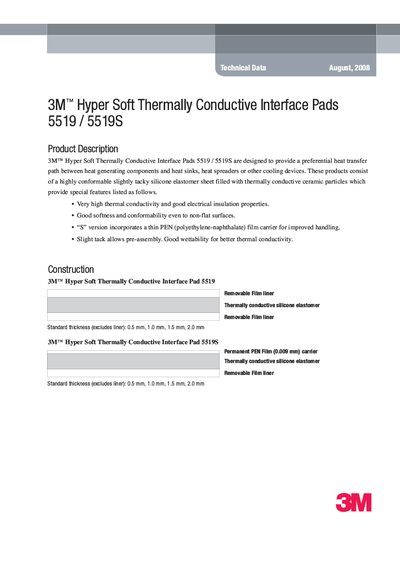

3M Hyper Soft Thermally Conductive Interface Pads 5519/5519S Technical Data Sheet
The Hyper Soft Thermally Conductive Interface Pads are silicone‑elastomer sheets filled with ceramic particles, offering a highly conformable, slightly tacky surface for efficient heat transfer between components and heat sinks. The standard versions have removable film liners, while the “S” version includes a thin PEN film carrier for easier handling.
Typical physical properties include a thermal conductivity of 4 W/mK, Shore 00 hardness of 80, and a dielectric strength of 11 kV/mm. The pads are available in thicknesses of 0.5 mm, 1.0 mm, 1.5 mm, and 2.0 mm, and they meet UL‑94 flammability, RoHS, and TSCA requirements.
3M 5519S specifications
| Thermal Conductivity | 4 W/mK |
|---|---|
| Density | 3.1 g/cm³ |
| Hardness (Shore 00) | 80 |
| Dielectric Constant (1‑100 kHz) | 19.5 |
| Available Thicknesses (excluding liner) | 0.5 mm, 1.0 mm, 1.5 mm, 2.0 mm |
Source: 3M Hyper Soft Thermally Conductive Interface Pads 5519/5519S Technical Data Sheet
All 3M 5519S documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What thickness options are offered for the 5519/5519S pads?
The pads are supplied in standard thicknesses of 0.5 mm, 1.0 mm, 1.5 mm, and 2.0 mm, not counting the liner.
From: 3M Hyper Soft Thermally Conductive Interface Pads 5519/5519S Technical Data Sheet
Are the Hyper Soft pads RoHS compliant?
Yes, the pads comply with the EU RoHS Directive 2002/95/EC and 2005/618/EC.
From: 3M Hyper Soft Thermally Conductive Interface Pads 5519/5519S Technical Data Sheet
What is the purpose of the PET film on the S versions of the pads?
The PET film provides a non‑tacky surface that eases rework and assembly and improves dielectric strength.
What is the maximum temperature these pads can operate at?
The pads are rated for continuous operation up to 150 °C.
