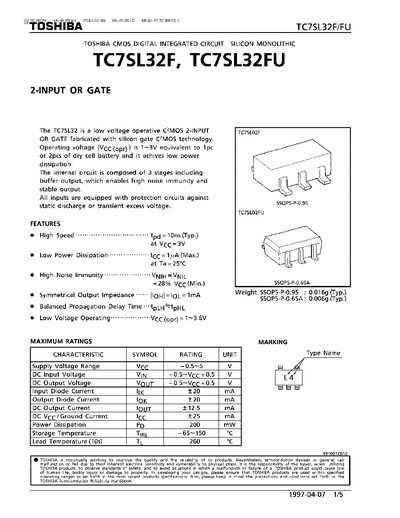

THSHIBA TC7SL32F TC7SL32FU Manual
Datasheet 5 pages · 218 KB · EN
The TC7SL32F/FU is a low‑voltage C2MOS 2‑input OR gate with high noise immunity, low power dissipation, and symmetrical output impedance. It is offered in SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages.
The document provides recommended operating conditions, maximum ratings, DC and AC electrical characteristics, and package outline drawings for designers integrating the device into low‑power applications.
Toshiba TC7SL32F specifications
| Supply Voltage (Vcc) | 1~3.6 V |
|---|---|
| Typical Propagation Delay | 10 ns at Vcc=3 V |
| Power Dissipation | 200 mW |
| Input Diode Current | ≤20 mA |
| Output Diode Current | ≤20 mA |
| Storage Temperature | -65~150 °C |
| Weight (SSOP5‑P‑0.95) | 0.016 g (typ.) |
All Toshiba TC7SL32F documents by type
Datasheet 3
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the TC7SL32F/FU?
The device operates with a supply voltage from 1 V to 3.6 V.
What is the typical propagation delay of the gate?
Typical propagation delay is 10 ns at a supply voltage of 3 V.
What is the supply voltage range for the TC7SL32F/FU?
The device operates with a supply voltage from 1 V to 3.6 V.
What is the maximum power dissipation of the IC?
The maximum power dissipation is 200 mW.
