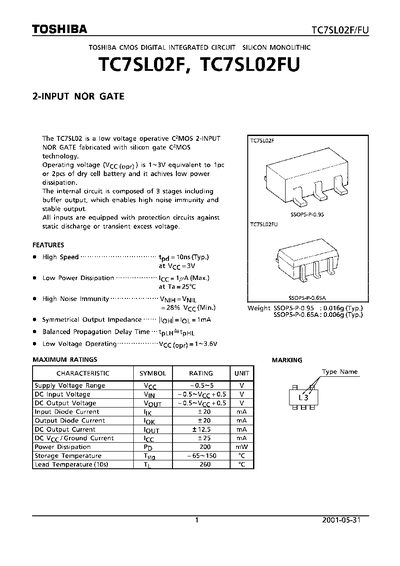

TOSHIBA TC7SL02F TC7SL02FU handbook
The TC7SLO2F/FU is a low‑voltage CMOS 2‑input NOR gate with high noise immunity and low power dissipation. It features a three‑stage internal circuit with buffered output and static‑discharge protection on all inputs.
The document lists the device's operating voltage range (1 V to 3.6 V), typical propagation delay of 10 ns at 3 V, power dissipation of 200 mW, and package options (SSOP5‑P‑0.95 and SSOP5‑P‑0.65A). Mechanical data such as weight (0.016 g typical) and storage temperature limits (‑65 °C to 150 °C) are also included.
Toshiba TC7SL02F specifications
| Operating voltage (Vcc) | 1~3.6 V |
|---|---|
| Typical propagation delay (tod) | 10 ns at Vcc = 3 V |
| Power dissipation (Pb) | 200 mW |
| Package weight (SSOP5‑P‑0.95) | 0.016 g (typ) |
| Storage temperature range | -65 °C to 150 °C |
All Toshiba TC7SL02F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the TC7SLO2F/FU?
The device operates from 1 V up to 3.6 V.
What is the typical propagation delay of the TC7SLO2F/FU?
The typical propagation delay is 10 ns when Vcc is 3 V.
What supply voltage range does the TC7SLO2F/FU support?
It operates from 1 V to 3.6 V.
What is the typical package weight of the TC7SLO2F version?
The SSOP5‑P‑0.95 package weighs about 0.016 g (typ.).
