THSHIBA TC7SL32F TC7SL32FU Manual(1)

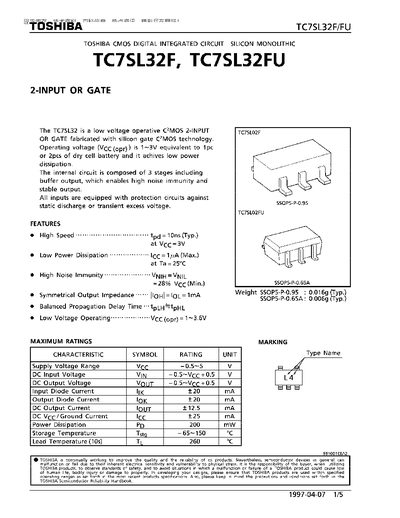

THSHIBA TC7SL32F TC7SL32FU Manual(1) - cover page
Brand
Toshiba
Category
Other Electronics
Document type
Datasheet
Language
English
Pages
5
File format
PDF
File size
218 KB
Published
01 April, 2012
Updated
24 May, 2012
MD5 checksum
2E2DC87A04BB92D39175DF9A57BF553D

About this manual

The Toshiba TC7SL32F/FU is a low‑voltage C2MOS 2‑input OR gate designed for low power dissipation and high noise immunity. It features symmetrical output impedance, balanced propagation delay and built‑in protection against static discharge.

The document provides detailed electrical characteristics, maximum ratings, recommended operating conditions and mechanical dimensions for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A packages.

What's inside

  • Features
  • Maximum Ratings
  • Recommended Operating Conditions
  • DC Electrical Characteristics
  • AC Electrical Characteristics
  • Outline Drawing
  • Logic Diagram Pin Connection

Specifications

Supply Voltage (Vcc)1~3.6 V
Typical Propagation Delay10 ns at Vcc=3 V
Power Dissipation200 mW
Input Diode Current≤20 mA
Output Diode Current≤20 mA
Storage Temperature-65~150 °C
Weight (SSOP5‑P‑0.95)0.016 g (typ.)

Frequently asked questions

What is the operating voltage range of the TC7SL32F/FU?

The device operates with a supply voltage from 1 V to 3.6 V.

What is the typical propagation delay of the gate?

Typical propagation delay is 10 ns at a supply voltage of 3 V.

What is the maximum power dissipation rating?

The maximum power dissipation is 200 mW.
