Start here

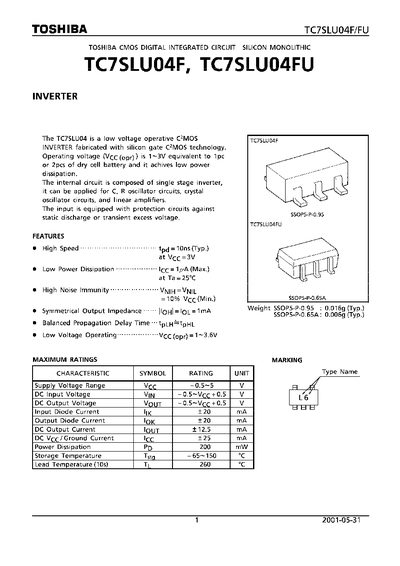

THSHIBA TC7SLU04F TC7SLU04FU Manual(1)
The TC7SLU04F/FU is a low‑voltage CMOS inverter IC fabricated with silicon‑gate C7MOS technology. It operates from 1 V to 3.6 V and is suitable for C‑type, R‑type, crystal oscillator, and linear amplifier circuits. The device includes protection against static discharge and transient over‑voltage.
The datasheet lists detailed DC and AC electrical characteristics, maximum ratings, recommended operating conditions, and package dimensions for both SSOP5‑P‑0.95 and SSOP5‑P‑0.65 variants. It also contains restrictions on product use and safety guidelines for designers.
Toshiba TC7SLU04F specifications
| Supply Voltage Range (VCC) | 1 ~ 3.6 V |
|---|---|
| Input Voltage (VIN) | 0 ~ VCC |
| Output Voltage (VOUT) | 0 ~ VCC +0.5 V |
| Power Dissipation | 200 mW |
| Storage Temperature | -65 °C ~ 150 °C |
| Lead Temperature (10 s) | 260 °C |
| Output Transition tTLH (C=15 pF) | 6.0 ns |
| Propagation Delay tPLH (C=15 pF) | 40 ns |
| Typical Package Weight (SSOP5‑P‑0.95) | 0.016 g |
| Typical Package Weight (SSOP5‑P‑0.65) | 0.006 g |
All Toshiba TC7SLU04F documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range of the TC7SLU04F/FU?
The device operates from 1 V to 3.6 V.
What is the maximum power dissipation of the IC?
The maximum power dissipation is 200 mW.
What is the operating voltage range of the TC7SLU04F/FU inverter?
The device operates from a supply voltage of 1 V to 3.6 V.
What are the maximum power dissipation and storage temperature specifications?
Maximum power dissipation is 200 mW and the storage temperature range is –65 °C to 150 °C.
