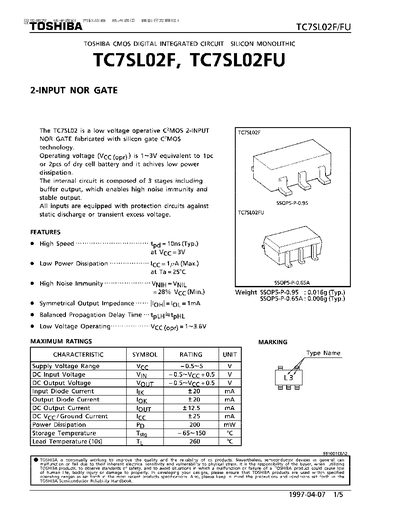

The TC7SLO2F/FU is a low‑voltage CMOS 2‑input NOR gate fabricated with silicon‑gate CMOS technology. It operates from 1 V to 3.6 V, offering low power dissipation and high noise immunity. All inputs include protection against static discharge and transient over‑voltage.
The device is supplied in SSOP5‑P‑0.95 and SSOP5‑P‑0.65 packages, with typical weights of 0.016 g and 0.006 g respectively. The datasheet provides detailed electrical characteristics, maximum ratings, recommended operating conditions, and package outline drawings.
| Supply Voltage (VCC) | 1 V ~ 3.6 V |
|---|---|
| Input Voltage (VIN) | 0 V ~ VCC |
| Output Voltage (VOUT) | 0 V ~ VCC |
| Operating Temperature | -40 °C ~ 85 °C |
| Typical Propagation Delay | tpLH = tpHL (balanced) |
| Maximum Output Current | 12.5 mA |
| Input Leakage Current | 1 mA (typ.) |
| Power Dissipation | 200 mW |
It operates from 1 V to 3.6 V.
The SSOP5‑P‑0.95 package weighs about 0.016 g (typ.).
The device can source up to 12.5 mA.
It is specified for –40 °C to 85 °C.
