TC7S04F/FU is a high speed CMOS switch device produced by Toshiba. It has the characteristics of low power consumption, high speed, high anti-interference ability, etc. The device adopts a 3-stage buffer structure, and the output current is 1/2 of the TC74HC equivalent.
The TC7S04F/FU is a CMOS digital inverter IC featuring a three‑stage buffered architecture, low static current (1 nA max) and the ability to directly drive five LSTTL loads. It includes input protection diodes and offers output current about half of a comparable TOC74HC device.

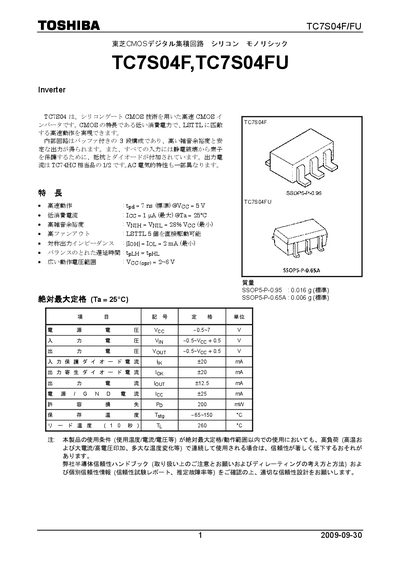

This datasheet provides detailed electrical characteristics (DC and AC), pin‑out diagrams, package dimensions for the SSOP5‑P‑0.95 and SSOP5‑P‑0.65A variants, and handling and safety information for reliable design use. This manual is written in Japanese.
| Propagation delay (tpd) | 7 ns (typical) @ VCC=5 V |
|---|---|
| Supply/GND current (Ilcc) | 25 mA |
| Power dissipation (Pb) | 200 mW |
| Storage temperature (Ta) | -65 °C to 150 °C |
| Package mass (SSOP5‑P‑0.95) | 0.016 g (standard) |
The typical propagation delay is 7 ns when powered at 5 V.
The maximum allowed power dissipation is 200 mW.
