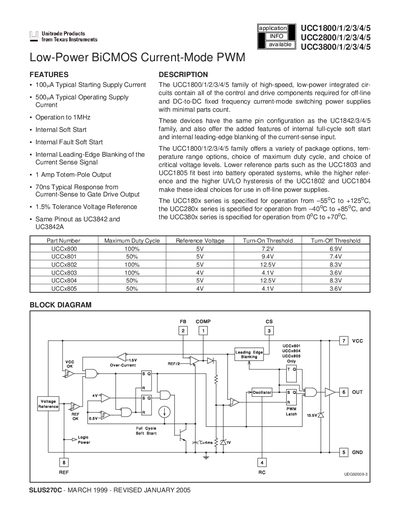

Texas Instruments UCC1800/1/2/3/4/5 UCC2800/1/2/3/4/5 UCC3800/1/2/3/4/5 Low-Power BiCMOS Current-Mode PWM Handbook
The document details the features of the UCC1800/1/2/3/4/5, UCC2800/1/2/3/4/5 and UCC3800/1/2/3/4/5 families, which are high‑speed, low‑power integrated circuits for off‑line and DC‑to‑DC fixed‑frequency current‑mode switching power supplies. It lists typical supply currents, operating frequency up to 1 MHz, internal soft‑start, leading‑edge blanking, and a 1 A totem‑pole output.
Packaging options, pin functions, absolute maximum ratings, electrical characteristics, and mechanical drawings are provided for DIL‑8, SOIC‑8, TSSOP‑8 and other package types, along with ordering information and a standard TI disclaimer.
Texas Instruments UCC5 specifications
| Typical Starting Supply Current | 100 µA |
|---|---|
| Typical Operating Supply Current | 500 µA |
| Maximum Operating Frequency | 1 MHz |
| Maximum Output Current | ±1 A |
All Texas Instruments UCC5 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the typical starting supply current for these devices?
The typical starting supply current is 100 µA.
What is the typical starting supply current for the UCC2813/UCC3813?
The typical starting supply current is 100 µA.
What is the maximum operating frequency of these PWM controllers?
They can operate up to 1 MHz.
