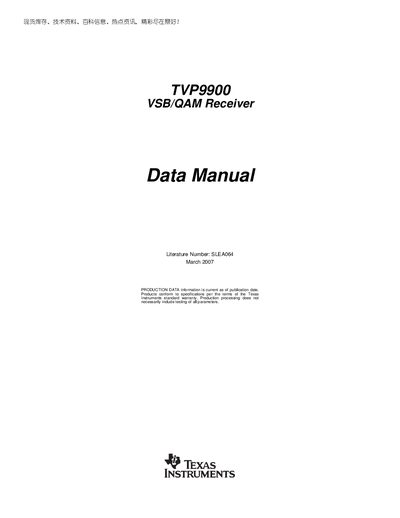

Texas Instruments TVP9900 VSB/QAM Receiver Data Manual
The TVP9900 is a cost‑effective digital TV front‑end system‑on‑chip that integrates a programmable gain amplifier, 10‑bit A/D converter, VSB and QAM demodulators, forward error correction, and peripheral interfaces such as AGC, tuner control, and CEA‑909 antenna control. It targets low‑cost, high‑volume DTV receivers and supports ATSC VSB and ITU‑T Annex B QAM inputs.
The manual includes a block diagram, terminal assignments, detailed functional descriptions, a complete I²C register summary, high‑K PCB design recommendations, and package information for the 80‑pin TQFP‑PowerPAD device. It also contains timing diagrams for MPEG, host, tuner, and antenna interfaces.
Texas Instruments TVP9900 specifications
| Package type | 80‑Pin TQFP‑PowerPAD |
|---|---|
| Operating temperature range | 0°C to 70°C |
| A/D converter resolution | 10‑bit |
| IF sampling method | Direct 44‑MHz IF sampling |
| Power‑down capability | Supported |
Source: Texas Instruments TVP9900 VSB/QAM Receiver Data Manual
All Texas Instruments TVP9900 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What package does the TVP9900 use?
The TVP9900 is offered in an 80‑Pin TQFP‑PowerPAD package.
From: Texas Instruments TVP9900 VSB/QAM Receiver Data Manual
What is the operating temperature range of the TVP9900?
It operates from 0 °C up to 70 °C.
From: Texas Instruments TVP9900 VSB/QAM Receiver Data Manual
Is an external downconverter required for the TVP9900?
No, the TVP9900 uses direct 44‑MHz IF sampling, eliminating the need for an external downconverter.
From: Texas Instruments TVP9900 VSB/QAM Receiver Data Manual
What package options are available for the TVP9900?
The device is offered in an 80‑pin TQFP package with a PowerPAD thermal pad.
From: Texas Instruments TVP9900 VSB/QAM Receiver Data Manual
