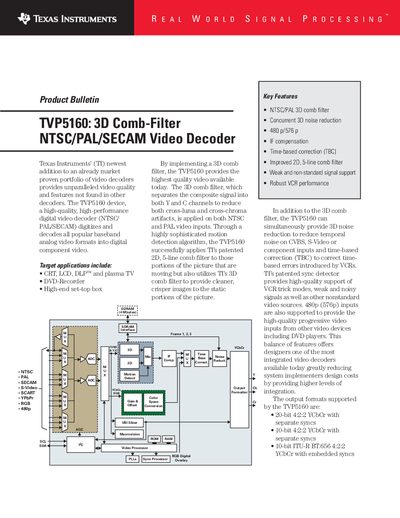

TEXAS INSTRUMENTS TVP5160: 3D Comb-Filter NTSC/PAL/SECAM Video Decoder
The TVP5160 video decoder from Texas Instruments provides a 3‑D comb filter and concurrent 3‑D noise reduction to deliver high‑quality video from NTSC, PAL and SECAM sources. It supports a wide range of input types, including composite, S‑Video, component (YPbPr), RGB and SCART, and outputs 20‑bit or 10‑bit 4:2:2 YCbCr video formats.
Technical details include 11‑bit, 60‑MSPS A/D converters, robust sync detection for weak signals, time‑base correction, and a built‑in VBI data processor for Teletext and closed‑caption retrieval. The device operates on a low‑power 1.8 V digital core with 3.3 V I/O and includes programmable overlay and Macrovision copy‑protection features.
Texas Instruments TVP5160 specifications
| A/D converter resolution | 11‑bit, 60 MSPS |
|---|---|
| Output format (YCbCr) | 20‑bit 4:2:2 with separate syncs |
| Output format (YCbCr) | 10‑bit 4:2:2 with separate syncs |
| Output format (YCbCr) | 10‑bit ITU‑R BT.656 4:2:2 with embedded syncs |
| Supported input types | Composite, S‑Video, Component (YPbPr), RGB, SCART |
Source: TEXAS INSTRUMENTS TVP5160: 3D Comb-Filter NTSC/PAL/SECAM Video Decoder
All Texas Instruments TVP5160 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
Does the TVP5160 provide 3‑D noise reduction?
Yes, it includes concurrent 3‑D noise reduction to reduce temporal noise.
From: TEXAS INSTRUMENTS TVP5160: 3D Comb-Filter NTSC/PAL/SECAM Video Decoder
How many video input terminals are available on the TVP5160?
The device has 12 configurable video input terminals.
From: TEXAS INSTRUMENTS TVP5160: 3D Comb-Filter NTSC/PAL/SECAM Video Decoder
How many video input terminals are available on the TVP5160?
The device provides a total of 12 video input terminals that can be configured for various input types.
From: TEXAS INSTRUMENTS TVP5160: 3D Comb-Filter NTSC/PAL/SECAM Video Decoder1
What output video formats does the TVP5160 provide?
It offers 20‑bit 4:2:2 YCbCr with separate syncs, 10‑bit 4:2:2 YCbCr with separate syncs, and 10‑bit ITU‑R BT.656 4:2:2 YCbCr with embedded syncs.
