Start here

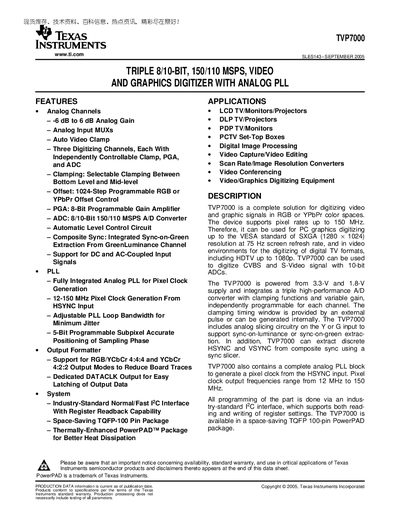

Texas Instruments TVP7000 Datasheet
The TVP7000 is a triple 8/10‑bit video and graphics digitizer that supports pixel rates up to 150 MHz. It includes an integrated analog PLL for pixel‑clock generation, three independent digitizing channels with programmable gain and clamp, and supports RGB and YPbPr color spaces.
The document details pin assignments, absolute maximum ratings, recommended operating conditions, electrical characteristics, timing requirements, and mechanical package information for the 100‑pin TQFP PowerPAD package.
Texas Instruments TVP7000 specifications
| Pixel Clock Generation Range | 12‑150 MHz |
|---|---|
| ADC Resolution | 8/10‑bit |
| Analog Supply Voltage (A33VDD) | 3.3 V |
| Maximum Power Dissipation at 148.5 MHz | 1.296 W |
| Operating Temperature Range | 0 °C to 70 °C |
All Texas Instruments TVP7000 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
How many digitizing channels does the TVP7000 provide?
The device provides three independent digitizing channels, each with its own clamp, PGA, and ADC.
What is the package type of the TVP7000?
The TVP7000 is offered in a 100‑pin TQFP PowerPAD plastic quad flat‑pack.
What package does the TVP7000 use?
It is supplied in a 100‑pin TQFP PowerPAD plastic quad flat‑pack.
What is the maximum pixel clock frequency?
The device can generate pixel clocks up to 150 MHz.
