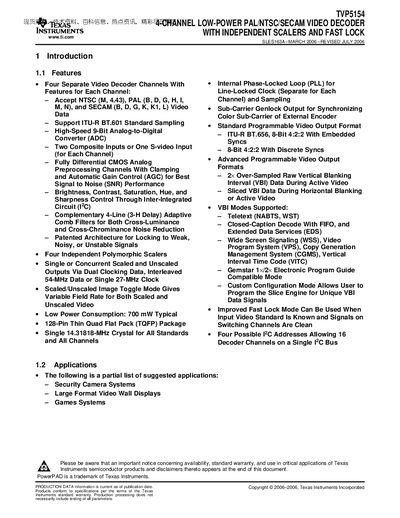

Texas Instruments TVP5154 Video Decoder Datasheet
The TVP5154 video decoder provides four independent channels that convert NTSC, PAL, or SECAM analog video to digital YCbCr 4:2:2 output. Each channel includes a programmable scaler, adaptive comb filter, and supports both composite and S‑video inputs. The device operates from a single 1.8 V analog supply and a 3.3 V I/O supply, consuming typically 700 mW.
The datasheet includes a functional block diagram, pinout tables, terminal descriptions, and detailed analog and digital processing sections. It also covers thermal‑pad mechanical data for the PowerPAD package and the standard TI product notice.
Texas Instruments TVP5154 specifications
| Number of channels | 4 |
|---|---|
| Supported video standards | PAL, NTSC, SECAM |
| Typical power consumption | 700 mW |
| Maximum power consumption | < 720 mW |
| Package | 128‑pin TQFP with PowerPAD |
| Analog supply voltage | 1.8 V |
| I/O supply voltage | 3.3 V |
| ADC resolution | 9‑bit |
| Sampling frequency | 27 MHz (ITU‑R BT.601) |
| Output format | ITU‑R BT.656 8‑bit 4:2:2 with embedded syncs |
