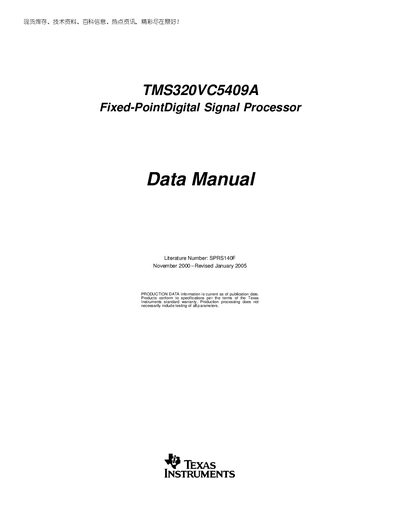

Texas Instruments TMS320VC5409A Fixed-Point Digital Signal Processor Data Manual
This data manual for the TMS320VC5409A fixed‑point digital signal processor presents the technical specifications, electrical characteristics, and mechanical data. It includes revision history, scope, and a list of figures and tables that describe the device architecture and pin assignments.
The document is organized into sections covering functional overview, memory maps, on‑chip peripherals, timing parameters, package thermal resistance, and mechanical drawings. It also contains legal notices and contact information for Texas Instruments.
Texas Instruments TMS320VC5409A specifications
| Output current limit Igy | -8 mA |
|---|---|
| Output current limit Ip | 8 mA |
| Package type | PGE (S‑PQFP‑G144) plastic quad flat‑pack |
| Maximum package height | 1.60 mm |
