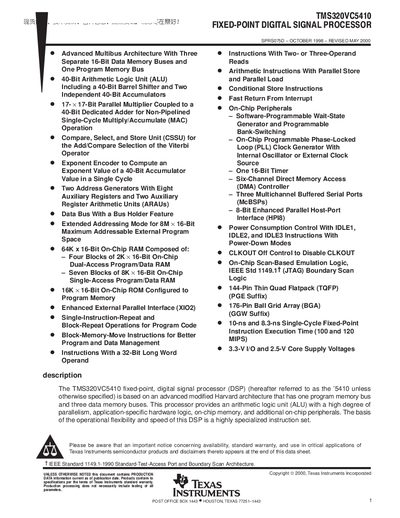

Texas Instruments TMS320VC5410 Datasheet
The TMS320VC5410 is a fixed‑point digital signal processor featuring a 40‑bit ALU, 17‑bit parallel multiplier, and single‑cycle MAC operation. It offers separate program and data memory buses, on‑chip RAM and ROM, and a range of peripheral interfaces.
This datasheet includes a detailed product description, pin‑assignment tables for the 144‑pin PGE and 176‑pin GGW packages, terminal function tables, mechanical package data, and an important notice about warranty and product changes.
Texas Instruments TMS320VC5410 specifications
| ALU width | 40‑bit |
|---|---|
| Parallel multiplier | 17‑bit |
| Multiply/Accumulate (MAC) | Single‑cycle |
| I/O supply voltage | 3.3 V |
| Core supply voltage | 2.5 V |
| On‑chip RAM (additional) | Seven blocks of 8K × 16‑bit |
| On‑chip ROM | 16K × 16‑bit |
| Maximum performance | 100–120 MIPS |
| PGE package pins | 144 pins |
All Texas Instruments TMS320VC5410 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the supply voltages for I/O and core operation?
The device uses a 3.3 V I/O supply and a 2.5 V core supply voltage.
How many pins are in the PGE package?
The PGE version of the TMS320VC5410 comes in a 144‑pin package.
What supply voltages are required for the TMS320VC5410?
The device uses 3.3 V for I/O pins and 2.5 V for the core supply.
How many pins are in the PGE package?
The PGE package of the TMS320VC5410 has 144 pins.
