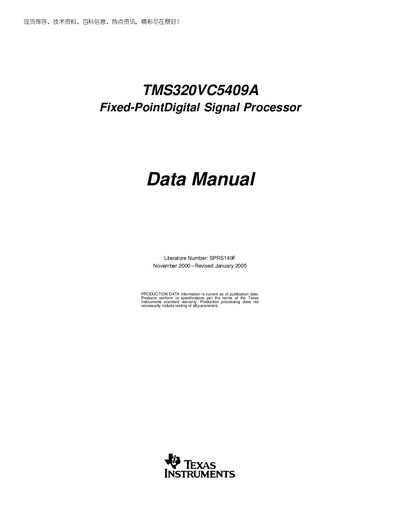

This document is the data manual for TMS320VC5409A Fixed-Point Digital Signal Processor, providing information on stock inventory, technical data, encyclopedia information, and hot topics.
The TMS320VC5409A data manual (Literature Number: SPRS140F) presents the technical specifications, pin assignments, and functional overview of Texas Instruments' fixed‑point digital signal processor. It includes revision history, electrical characteristics, timing parameters, and mechanical data for the device.
Key sections cover the processor’s on‑chip memory, peripheral interfaces, DMA controller, clock options, and package thermal resistance. Mechanical drawings describe the PGE (S‑PQFP‑G144) plastic quad flat‑pack dimensions and tolerances.
| Output current limit Igy | -8 mA |
|---|---|
| Output current limit Ip | 8 mA |
| Package type | PGE (S‑PQFP‑G144) plastic quad flat‑pack |
| Maximum package height | 1.60 mm |
The literature number is SPRS140F.
It was revised in January 2005.
Igy is limited to –8 mA and Ip to 8 mA.
It uses a PGE (S‑PQFP‑G144) plastic quad flat‑pack.
