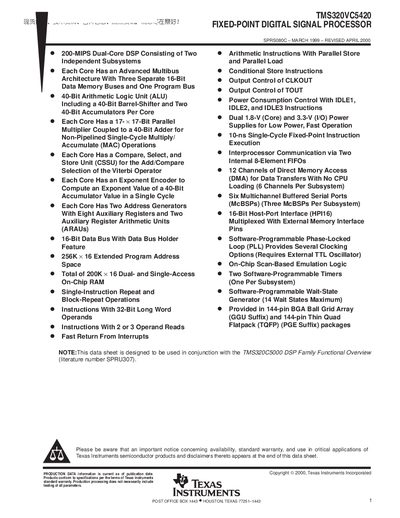

Texas Instruments TMS320VC5420 Datasheet
The TMS320VC5420 is a fixed‑point digital signal processor featuring a dual‑core architecture capable of up to 200 MIPS performance. The document describes the processor's internal architecture, on‑chip peripherals, memory organization, and timing characteristics.
Included are detailed pin‑assignment tables for both the 144‑pin BGA (GGU) and 144‑pin Thin Quad Flat‑Pack (PGE) packages, mechanical drawings, absolute maximum ratings, recommended operating conditions, and electrical characteristics. The datasheet also lists the commercial and industrial temperature‑range part numbers and provides a notice on warranty and product availability.
Texas Instruments TMS320VC5420 specifications
| Processing Speed | 200 MIPS |
|---|---|
| On‑Chip RAM | 200 K × 16 bits (dual‑ and single‑access) |
| Extended Program Memory | 256 K × 16 bits |
| Timers | Two software‑programmable timers (one per subsystem) |
| Wait‑State Generator | Up to 14 wait states |
| Package Types | 144‑pin BGA (GGU) and 144‑pin Thin Quad Flat‑Pack (PGE) |
| Operating Temperature – Commercial | 0 °C to 85 °C |
| Operating Temperature – Industrial | 40 °C to 100 °C |
All Texas Instruments TMS320VC5420 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum processing speed of the TMS320VC5420?
The device can achieve up to 200 MIPS performance.
Which package options are available for the TMS320VC5420?
It is offered in a 144‑pin BGA (GGU) package and a 144‑pin Thin Quad Flat‑Pack (PGE) package.
What is the maximum MIPS performance of the TMS320VC5420?
The device provides up to 200 MIPS of processing performance.
How much on‑chip RAM does the TMS320VC5420 contain?
The DSP includes a total of 200 K × 16 bits of on‑chip RAM.
