VT6X1 is a dual transistor power management device from ROHM that features a small footprint and a wide range of applications.
The VT6X1 is a dual NPN silicon epitaxial planar transistor offered by ROHM. It is a very small package that contains two transistors and is intended for switch and LED‑driver applications.

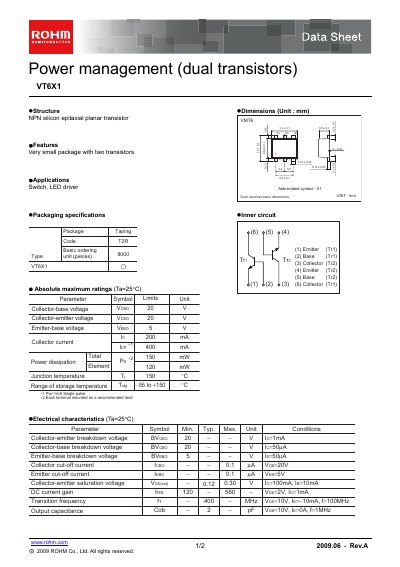

The sheet lists the device's absolute maximum ratings, electrical characteristics, dimensions, and packaging details, including a T2R package code and typical power‑dissipation limits. It also includes standard legal notices and usage guidelines.
| Collector‑Base voltage (VcBo) | 20 V |
|---|---|
| Collector‑Emitter voltage (Vceo) | 20 V |
| Emitter‑Base voltage (VEBO) | 5 V |
| Collector current (Icp) | 400 mA |
| Total power dissipation (Pp) | 150 mW |
| Junction temperature (Tj) | 150 °C |
| Storage temperature range | -55 to +150 °C |
The VT6X1 can withstand up to 20 V between collector and emitter.
It is intended for switch and LED driver circuits.
The device is offered in a very small dual‑transistor package, code T2R.
The component can be stored from –55 °C to +150 °C.
