This document describes the features and characteristics of video and audio equipment, including different standards, compatibility, and supported formats.

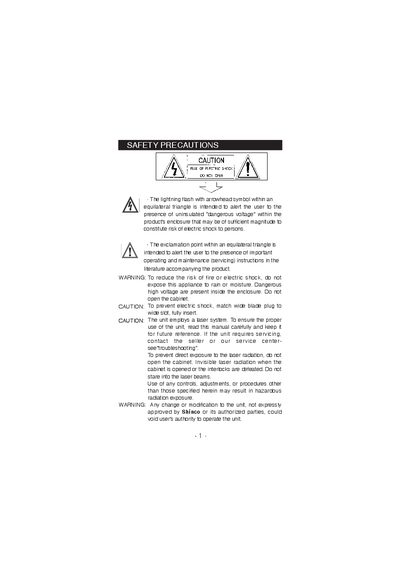

This manual covers safety precautions, proper handling of the AC and car adapters, and detailed operating instructions for playing DVDs, MP3s, and using various playback modes. It also explains how to attach, charge, and detach the optional rechargeable battery pack safely.
Technical specifications such as laser wavelength, video system formats, audio performance, power requirements, dimensions, and weight are listed, along with troubleshooting guidance and warranty information.
| Laser wavelength | 650nm |
|---|---|
| Video system | NTSC/PAL/MULTI |
| Frequency response | 20Hz–20kHz 11dB |
| Signal/noise ratio | 95 dB |
| Audio distortion | + noise ss-80 (1kHz) |
| Channel separation | 385 dB |
| Dynamic range | 85 dB |
| Analog audio output level | 2 V ±10% |
| Digital audio output level | 1.6 V p‑p |
| Power supply | DC 9 V 2 A |
| Operating temperature | 5 °C – 35 °C |
| Power consumption | < 20 W |
| Dimensions (W×H×D) | 190 mm × 140 mm × 25 mm |
| Weight | 720 g |
With the TFT display on, continuous playback is about 3 hours; with the TFT off, about 5 hours.
Turn the player off, turn it upside down, insert the battery pack's catches into the corresponding holes, and slide it until it is firmly attached.
Unplug the product from the wall outlet and use a damp cloth; do not use liquid or aerosol cleaners.
No – the manual warns not to expose the unit to rain, moisture, or humid places such as bathrooms.
