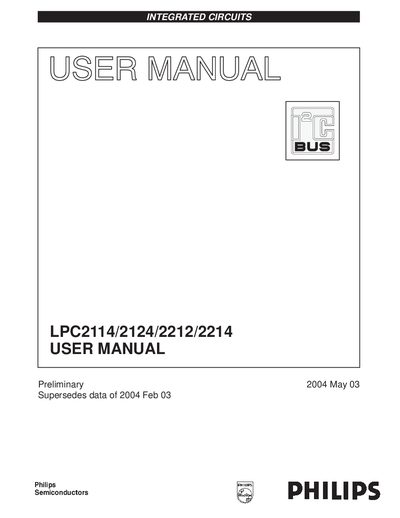

Philips LPC2114/2124/2212/2214 User Manual
This manual introduces the Philips LPC2114/2124/2212/2214 ARM‑based microcontroller family, covering its general description, key features, and typical applications. It includes an architectural overview, processor core details, and memory organization.
The document describes peripheral blocks such as the on‑chip flash memory system, static RAM, external memory controller, GPIO, UART, I²C, SPI, timers, PWM, ADC, and RealMonitor debugging support. Package options, pin descriptions, and register maps are provided for both the 64‑pin (LPC2114/2124) and 144‑pin (LPC2212/2214) variants.
Philips LPC2214 specifications
| Processor | ARM7TDMI‑S |
|---|---|
| Flash Memory | 128 kB |
| Package (LPC2212/2214) | 144‑pin |
All Philips LPC2214 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What processor core does the LPC2114/2124/2212/2214 use?
It uses an ARM7TDMI‑S processor core.
How much on‑chip flash memory is available?
The device includes 128 kB of on‑chip flash memory.
