Key facts
- Brand
- Philips
- Model
- DS3010
- Category
- Home Speakers
- Industry
- Computers
- Documents
- 2
- Languages
- EN
- Last added
- 2012-03-27
Start here

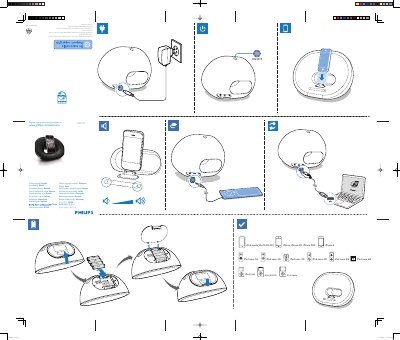

Philips DS3010 Audio System Quick Start Guide
Quick Start Guide 2 pages · 1.6 MB · EN
This Quick Start Guide helps users get the Philips DS3010 audio system up and running quickly. It includes safety notices, connection instructions, and basic operation steps.
The guide also lists the main technical specifications such as output power, signal‑to‑noise ratio, power consumption, dimensions and weight, allowing users to verify that the system meets their requirements.
Philips DS3010 specifications
| Rated Output Power | 2 x 5 W RMS |
|---|---|
| Signal to Noise Ratio | 85 dB |
| AUX Input | 0.6 V RMS, 10 kΩ |
| Input Voltage | 100‑240 V~50‑60 Hz, 1 A |
| Output Voltage | 9 V, 2000 mA |
| Operation Power Consumption | <18 W |
| Eco Standby Power Consumption | <1 W |
| Dimensions (W × H × D) | 210 × 150 × 135 mm |
| Weight | 0.96 kg |
All Philips DS3010 documents by type
Quick Start Guide 2
The shortest path to a working setup, usually only a few pages.
Questions answered in these manuals
What is the rated output power of the DS3010 amplifier?
The DS3010 amplifier is rated at 2 × 5 W RMS output power.
What are the power requirements for the DS3010?
It requires an AC input of 100‑240 V at 50‑60 Hz, 1 A and provides a 9 V, 2000 mA DC output.
What is the rated output power of the DS3010?
The amplifier provides a rated output power of 2 × 5 V RMS.
What are the physical dimensions of the DS3010?
The main unit measures 210 mm × 150 mm × 135 mm (W × H × D).
