Key facts
- Brand
- Philips
- Model
- 47PFL340
- Category
- Other Electronics
- Industry
- Electronics
- Documents
- 7
- Languages
- EN · ZH
- Last added
- 2012-03-26
Start here

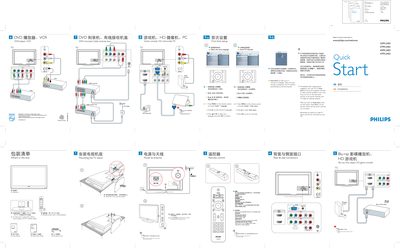

Philips 32PFL3403/37PFL3403/42PFL3403/47PFL3403 TV Quick Start Guide
This guide provides step‑by‑step instructions for first‑time setup of Philips 32‑47PFL3403 TV models. It explains how to connect the AC power cord, mount the TV stand, attach antennas or cable, and use the remote control to navigate menus, select inputs, and adjust settings.
The document also describes the Auto Store feature for scanning and storing broadcast channels, safety notes such as setting a PC monitor to 60 Hz before connection, and details the rear and side connectors (HDMI, audio, video).
Philips 47PFL340 specifications
| Resolution | 1366 × 768 p |
|---|---|
| Brightness | 500 cd/m² |
| Contrast ratio | 24000:1 |
| Response time | 8 ms |
| Viewing angle | 178° horizontal / 178° vertical |
| Audio output power | 2 × 10 W RMS |
| Power consumption | 300 W |
| Standby power | <0.3 W |
| Dimensions (W × H × D) | 1150 × 733 × 104 mm |
Source: Philips 47PFL340 User Manual
All Philips 47PFL340 documents by type
The shortest path to a working setup, usually only a few pages.
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I turn the TV on for the first time?
Connect the AC power cord and press the POWER button on the remote.
From: Philips 32PFL3403/37PFL3403/42PFL3403/47PFL3403 TV Quick Start Guide
How can I set the TV's language?
Press MENU on the remote, choose Install > Language, select your language, and confirm with OK.
From: Philips 32PFL3403/37PFL3403/42PFL3403/47PFL3403 TV Quick Start Guide
How many HDMI inputs does the Philips 47PFL340 have?
It has two HDMI inputs.
What audio technology does the TV use to enhance sound?
It uses Philips' Incredible Surround technology.
How should I mount the TV on a wall?
Wall mounting must be done by a qualified installer using a VESA‑compatible bracket and the specified M6 × 10 mm bolts.
From: Philips 32PFL3403 37PFL3403 42PFL3403 47PFL3403 32HFL3330 37HFL3330 TV User Manual
What is the standby power consumption of the TV?
The TV uses less than 0.3 W in standby mode.
From: Philips 32PFL3403 37PFL3403 42PFL3403 47PFL3403 32HFL3330 37HFL3330 TV User Manual
