The Panasonic WV-CW860A series is an outdoor 24-hour monitoring all-weather, rugged color integrated camera with 220x zoom. The camera features a rugged protective housing that meets the international IP66 protection standard, dustproof and moisture-proof, can be installed under eaves or exterior walls. This camera has a minimum illumination of 0.03Lux color mode and 0.0009Lux dark light black and white image, and can automatically switch from the daytime color mode to the nighttime black and white mode, thus realizing outdoor 24-hour monitoring. In addition, the lens can rotate 360° horizontally and 190° vertically, and also has a digital flip mechanism to track people around at any time. The privacy zone masking screen can prevent operators from misoperation and protect public privacy. Patrol learning and inspection can be achieved by two options in 64 preset positions, which greatly improves the monitoring capability.
The WV-CW860A series is a rugged, all‑weather colour/monochrome integrated camera designed for 24‑hour outdoor surveillance. It features an IP66‑rated housing, 220× total zoom (22× optical + 10× digital), and automatic day/night switching.

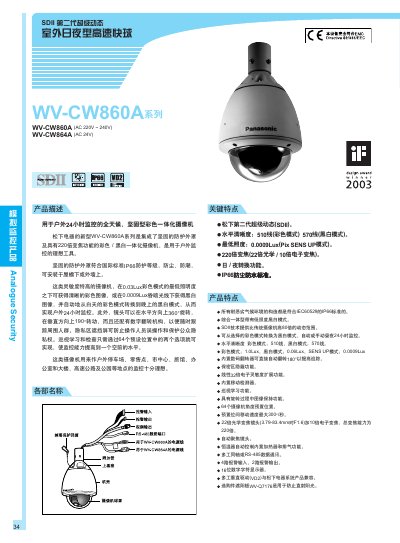

The manual covers key features, technical specifications, installation guidelines, operation controls, and optional accessories such as the WV‑Q7176 sunshade. It also details preset positions, alarm I/O, and communication interfaces. This manual is written in Chinese.
| Optical zoom | 22× |
|---|---|
| Electronic zoom | 10× |
| Total zoom | 220× |
| Minimum illumination (color mode) | 1.0 Lux |
| Minimum illumination (black‑white mode) | 0.06 Lux |
| Power consumption | 18 W (61 W with heater) |
It supports up to 64 preset positions.
It provides 22× optical zoom combined with 10× digital zoom for a total of 220× zoom.
The camera needs a minimum of 1.0 Lux in colour mode.
