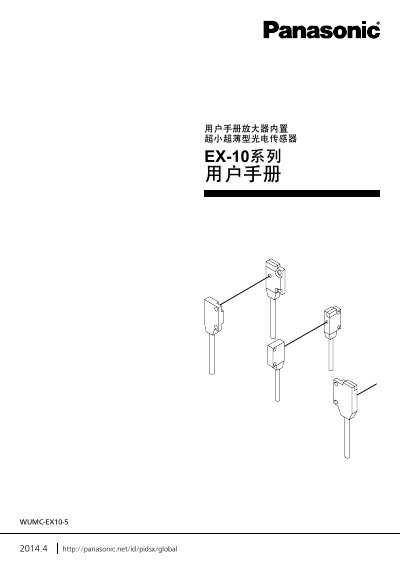

Panasonic EX-10 Series Ultra-Small Ultra-Thin Photoelectric Sensor User Manual
This document is the user manual for the Panasonic EX-10 Series of ultra-small and ultra-thin photoelectric sensors. It covers essential safety precautions, component identification, and installation guidelines for various sensor types including through-beam and retro-reflective models.
The guide details how to install the sensors securely, specifying torque limits and compatible mounting brackets. It also explains how to configure the operating modes, such as switching between 'ON when light is received' and 'ON when light is blocked', and provides specific spacing requirements to prevent interference when using multiple sensors in parallel. This manual is written in Chinese.
Panasonic EX-10 Series specifications
| Torque limit for tightening | 0.2N·m or less |
|---|---|
| Cable cross-section | 0.1mm² |
| Maximum cable length (standard) | 50m |
| Maximum cable length (Korea S-mark certified) | 10m |
Source: Panasonic EX-10 Series Ultra-Small Ultra-Thin Photoelectric Sensor User Manual
All Panasonic EX-10 Series documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
Can this sensor be used for human protection?
No, this product should not be used as a detection device for human protection.
From: Panasonic EX-10 Series Ultra-Small Ultra-Thin Photoelectric Sensor User Manual
What is the maximum tightening torque for installation?
The tightening torque should be 0.2N·m or less.
From: Panasonic EX-10 Series Ultra-Small Ultra-Thin Photoelectric Sensor User Manual
What is the maximum total length allowed for an extension cable?
The total length of the extension cable can be up to 50 meters.
From: Panasonic EX-10 Series Ultra-Small and Ultra-Thin Photoelectric Sensors User Manual
How long must a power-on wait period be before using certain models?
You must wait at least 100 milliseconds for EX-15, EX-15E, EX-17, and EX-17ED models.
From: Panasonic EX-10 Series Ultra-Small and Ultra-Thin Photoelectric Sensors User Manual
