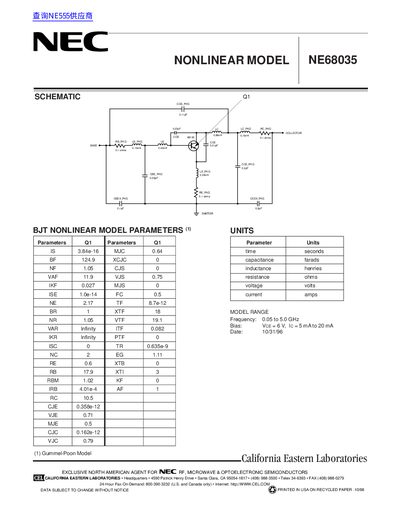

NEC NE68035 Nonlinear Model Datasheet
This document provides technical specifications and parameters for the NEC NE68035 Bipolar Junction Transistor (BJT) nonlinear model. It lists specific values for electrical characteristics such as saturation current, forward beta, and junction capacitance.
The datasheet is distributed by California Eastern Laboratories, identified as the exclusive North American agent for NEC RF, microwave, and optoelectronic semiconductors. The document includes a table of parameters with units like seconds, farads, henries, ohms, volts, amps, and frequency ranges.
NEC NE68035 specifications
| IS | 3.84e-16 A |
|---|---|
| BF | 124.9 |
| VAF | 11.9 V |
| Frequency range | 0.05 to 5.0 GHz |
Source: NEC NE68035 Datasheet
