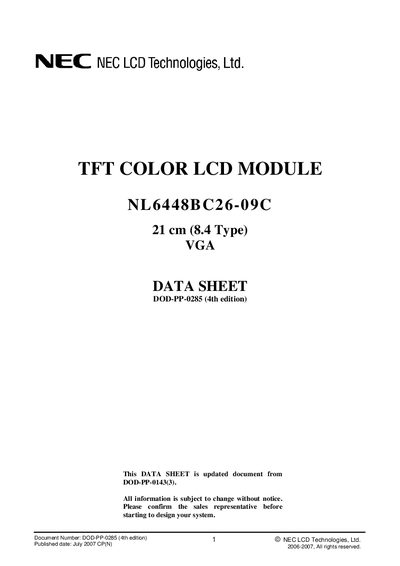

NEC NL6448BC26-09C TFT Color LCD Module Datasheet
The NEC NL6448BC26-09C is a 21 cm (8.4‑inch) TFT color LCD module with a 640 × 480 pixel active‑matrix panel and 262,144‑color depth. It is intended for industrial use such as computers, test equipment, and control panels, and meets NEC’s Standard quality grade and RoHS compliance.
The module offers a typical contrast ratio of 600:1, 750 cd/m² luminance at IBL = 5.0 mArms/lamp, and a 25 ms response time. It operates from 3.3 V or 5.0 V supplies, consumes about 5.3 W (typ.), and uses an edge‑light backlight with two cold‑cathode fluorescent lamps. Mechanical size is 200 × 152 × 10.5 mm (typ.) and weight 330 g (typ.).
NEC NL6448BC26-09 specifications
| Display area | 170.88 mm (H) × 128.16 mm (V) |
|---|---|
| Diagonal size | 21 cm (8.4 inches) |
| Resolution | 640 × 480 pixels |
| Color depth | 262,144 colors |
| Contrast ratio | 600:1 (typ.) |
| Horizontal viewing angle | 80° (typ.) |
| Vertical viewing angle (up) | 80° (typ.) |
| Response time | 25 ms (typ.) |
| Luminance | 750 cd/m² (typ.) at IBL = 5.0 mArms/lamp |
| Power consumption | 5.3 W (typ.) |
| Module size | 200 mm × 152 mm × 10.5 mm (typ.) |
| Weight | 330 g (typ.) |
| Backlight type | Edge‑light with 2 cold‑cathode fluorescent lamps |
| Power supply voltage (signal board) | 3.3 V or 5.0 V |
| Lamp voltage | 1,700 Vrms |
All NEC NL6448BC26-09 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the display resolution of the NL6448BC26-09C LCD module?
The module has a resolution of 640 × 480 pixels.
What contrast ratio and viewing angles does the NL6448BC26-09C provide?
The typical contrast ratio is 600:1, with horizontal viewing angles of 80° and vertical angles of 80° (up) and 60° (down).
What is the typical contrast ratio of the NL6448BC26-09 module?
The typical contrast ratio is 600:1.
From: NEC - Document Number: DOD-PP-0199 (4th edition) Published date: March 2007 CP(N) Manual
How much does the module weigh?
The module weighs about 330 g typical.
From: NEC - Document Number: DOD-PP-0199 (4th edition) Published date: March 2007 CP(N) Manual
