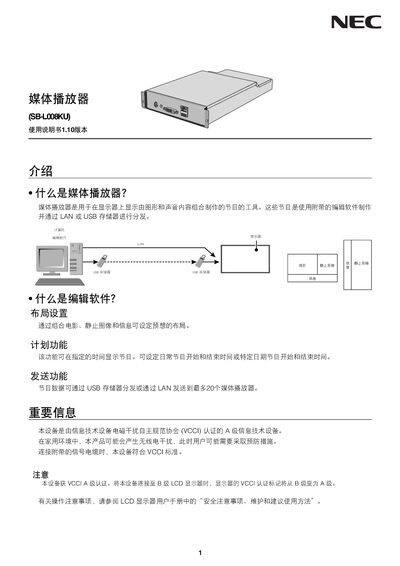

NEC SB-L008KU Media Player User Manual
This manual explains the functions of the NEC SB-L008KU Media Player, a device that plays combined graphic and audio programs on a display. It covers the use of the supplied editing software, program scheduling, and distribution via LAN or USB storage.
The guide includes step‑by‑step installation into a compatible NEC display, connection options (SD card, USB, LAN, DVI, audio), power‑state controls, program‑data creation and transfer, and detailed technical specifications such as resolution, power consumption, and environmental limits. This manual is written in Japanese.
NEC SB-L008KU specifications
| Default video resolution | 1920 x 1080 / 60 Hz |
|---|---|
| Maximum USB storage capacity | 8 GB |
| Maximum SD card capacity | 8 GB (included SD card 2 GB) |
| Media player power consumption | 12 W (DC) |
| Total power consumption (incl. display) | ≈35 W |
| Dimensions (W × H × D) | 376.0 mm × 85.0 mm × 225.0 mm |
| Storage humidity (non‑condensing) | 10 % – 80 % |
All NEC SB-L008KU documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What is the maximum USB storage capacity supported?
The media player supports up to 8 GB of USB storage.
What are the default video resolution settings?
The factory default video resolution is 1920 × 1080 at 60 Hz.
