This datasheet provides nonlinear model parameters of NE68035, including IS, BF, NF, VAF, IKF, ISE, FC, NE, TF, BR, XTF, NR, VTF, VAR, ITF, IKR, PTF, ISC, TR, NC, EG, RE, XTB, RB, XTI, RBM, KF, IRB, AF, RC, CJE, VJE, MJE, CJC, VJC

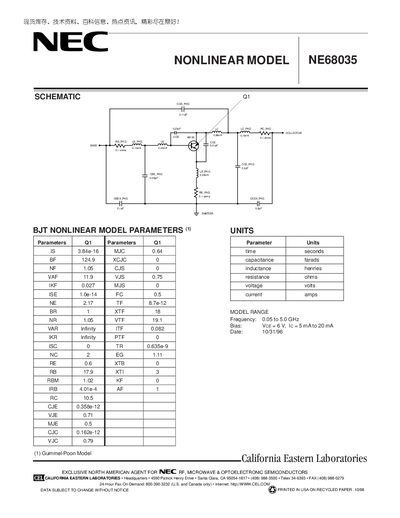

The NEC NE68035 is a bipolar junction transistor described by a nonlinear Gummel‑Poon model. The sheet lists the model number, package types, and a full set of electrical parameters needed for circuit simulation.
Key sections cover the nonlinear model definition, individual parameter values (IS, BF, NF, VAF, etc.), model range specifications such as frequency limits, and package resistance values.
| IS | 3.84e-16 A |
|---|---|
| BF | 124.9 |
| VAF | 11.9 V |
| Frequency range | 0.05 to 5.0 GHz |
The NE68035 operates from 0.05 GHz up to 5.0 GHz.
The forward beta (BF) is specified as 124.9.
The saturation current IS is 3.84 × 10⁻¹⁶ A.
