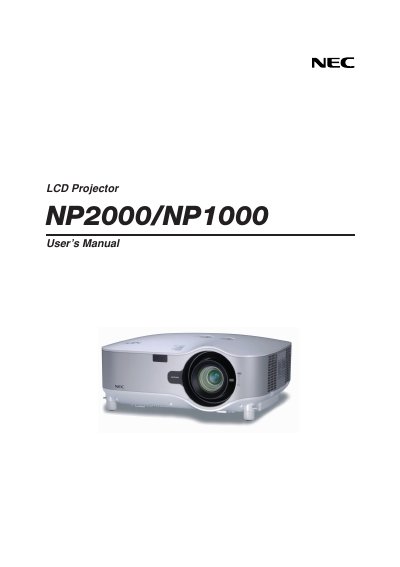

NEC NP2000/NP1000 LCD Projector User Manual
This manual introduces the NEC NP2000/NP1000 LCD projector, covering safety precautions, unpacking, and basic handling. It outlines the projector’s main components, remote control features, and optional lens handling.
Detailed sections guide users through installation, connection of video sources, menu navigation, image adjustment, maintenance, and troubleshooting. Technical specifications, lens options, and service information are provided in the appendix.
NEC NP2000/NP1000 specifications
| Model Number | NP2000/NP1000 |
|---|---|
| Optical LCD Panel | 0.8" p‑Si TFT active‑matrix with Micro Lens Array (Aspect ratio 4:3) |
| Resolution | 1024 × 768 pixels (up to UXGA 1400 × 1050 @ 60 Hz DVI‑D) |
| Lamp Power (NP2000) | 300 W AC (252 W Eco mode) |
| Lamp Power (NP1000) | 280 W AC (252 W Eco mode) |
| Light Output (NP2000) | 4000 lumens (≈80 % in Eco) |
| Light Output (NP1000) | 3500 lumens (≈85 % in Eco) |
| Contrast Ratio | 800 : 1 |
| Image Size (Standard lens) | 30" – 500" diagonal (0.76 m – 12.7 m) |
| Video Compatibility | NTSC, PAL, SECAM, HDTV 1080i/720p, various scan rates |
| Power Requirement | 100‑240 V AC, 50/60 Hz |
| Power Consumption (Normal mode) | 435 W |
All NEC NP2000/NP1000 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
How do I replace the lamp?
Follow the instructions on page 110 for lamp replacement and replace the lamp when the message “The lamp has reached the end of its usable life” appears.
What safety precautions should I take before installing the projector?
Turn off the main power, verify the power connector, ensure adequate ventilation, keep the unit away from water, and have a qualified technician perform ceiling mounting.
