The CM300DX-12A is a MITSUBISHI IGBT module with a maximum current of 300A and a maximum voltage of 600V. It is suitable for general inverters, servo amplifiers and power supplies.

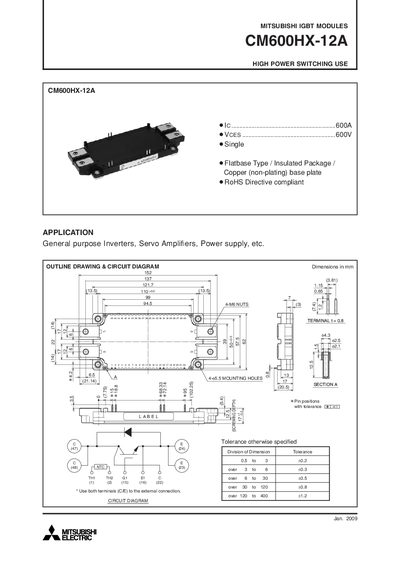

The Mitsubishi CM600HX-12A is a high‑power IGBT module designed for inverter, servo amplifier and power‑supply applications. The document provides absolute maximum ratings, electrical characteristics, and detailed performance curves for both the IGBT and its integrated free‑wheeling diode.
Key sections cover the module’s dimensions, mounting instructions, thermal resistance, and switching characteristics, allowing designers to evaluate suitability for high‑current, high‑voltage designs.
| Collector‑Emitter Voltage (VCE) | 600 V |
|---|---|
| Gate‑Emitter Voltage (VGE) | +20 V |
| Collector Current (Ic) – Typical | 500 A |
| Collector Current (Ic) – Pulse | 1200 A |
| Maximum Power Dissipation | 1890 W |
| Junction Temperature Range | -40 °C to +150 °C |
| Storage Temperature Range | -40 °C to +125 °C |
| Typical Weight | 330 g |
The module weighs about 330 g.
Torque for the main terminals (M6 screw) should be 3.5 – 4.5 N·m, and for the mounting M5 screw 2.5 – 3.5 N·m.
