Key facts
- Brand
- MICROCHIP
- Model
- PIC16F684
- Industry
- Industrial
- Documents
- 5
- Languages
- ZH · EN
- Last added
- 2022-12-06
Start here
Microchip PIC16F684 14-Pin 8-Bit CMOS Microcontroller Datasheet
This document is a Chinese datasheet for the Microchip PIC16F684, a high-performance RISC CPU-based microcontroller. It covers device architecture, memory organization, peripheral modules such as timers, comparators, and an A/D converter, as well as electrical specifications and package information. The device is designed for low-power applications with a wide operating voltage range of 2.0V to 5.5V. This manual is written in Chinese.
Read onlineMICROCHIP PIC16F684 specifications
| I/O Pins | 12 |
|---|---|
| A/D Converter Resolution | 10-bit |
| A/D Channels | 8 |
| Operating Voltage | 2.0V to 5.5V |
| Supply Current (32 kHz, 2.0V) | 8.5µA |
| Supply Current (1 MHz, 2.0V) | 100µA |
| Standby Current (2.0V) | <1 nA |
| Package Types | 14-pin PDIP, SOIC, TSSOP |
Source: Microchip PIC16F684 14-Pin 8-Bit CMOS Microcontroller Datasheet
All MICROCHIP PIC16F684 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the maximum input frequency for the oscillator?
The oscillator input frequency can range from DC to 20 MHz.
From: Microchip PIC16F684 14-Pin 8-Bit CMOS Microcontroller Datasheet
How many instructions does the PIC16F684 CPU require to learn?
Only 35 instructions are required to learn, with all except jump instructions being single-cycle.
From: Microchip PIC16F684 14-Pin 8-Bit CMOS Microcontroller Datasheet
What is the standby current of the PIC16F684?
The standby current is 1 nA at 2.0 V typical.

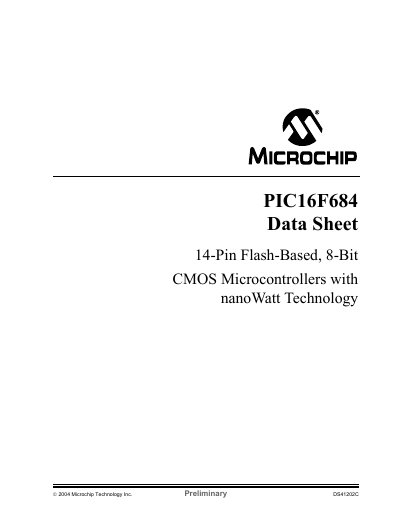

From: Microchip PIC16F684 14‑Pin Flash‑Based 8‑Bit CMOS Microcontroller Data Sheet
How many I/O pins does the PIC16F684 provide?
The device provides 12 I/O pins with individual direction control.
From: Microchip PIC16F684 14‑Pin Flash‑Based 8‑Bit CMOS Microcontroller Data Sheet
What is the operating voltage range of the PIC16F684?
The PIC16F684 operates from 2.0 V up to 5.5 V.
How many I/O pins are available on the PIC16F684?
The device provides 12 programmable I/O pins.
