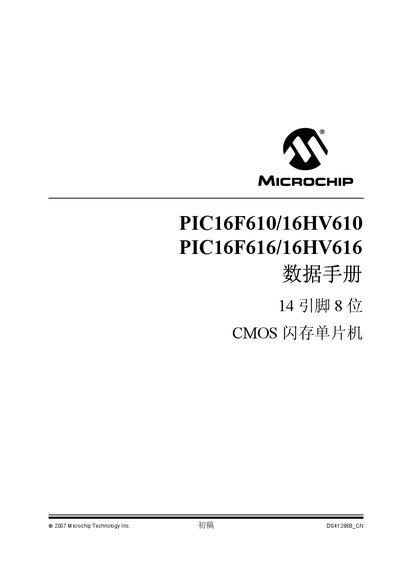

MICROCHIP PIC16F610/16HV610 PIC16F616/16HV616 handbook
This datasheet describes the PIC16F610, PIC16F616, PIC16HV610 and PIC16HV616 14‑pin and 16‑pin microcontrollers. It covers architecture, memory organization, oscillator options, I/O ports, timers, comparators, ADC, enhanced capture/compare/PWM modules and voltage regulator details.
The document also includes CPU special features, instruction set summary, development support information, electrical specifications, DC/AC characteristic graphs, package data and a full index for quick reference. This manual is written in Chinese.
MICROCHIP PIC16F610 specifications
| Maximum oscillator frequency | 20 MHz |
|---|---|
| Instruction cycle time | 200 ns |
| Operating voltage range (PIC16F610/616) | 2.0 V – 5.5 V |
| Standby current (2.0 V) | 50 nA (typ) |
| ADC resolution | 10‑bit |
| Flash endurance | 100 000 write cycles |
| Data retention | > 40 years |
| Hardware stack depth | 8 levels |
Source: MICROCHIP PIC16F610/16HV610 PIC16F616/16HV616 handbook
All MICROCHIP PIC16F610 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the operating voltage range for the PIC16F610/616?
The PIC16F610 and PIC16F616 operate from 2.0 V to 5.5 V.
From: MICROCHIP PIC16F610/16HV610 PIC16F616/16HV616 handbook
What is the maximum oscillator frequency supported by these devices?
They support a maximum oscillator frequency of 20 MHz.
From: MICROCHIP PIC16F610/16HV610 PIC16F616/16HV616 handbook
What is the operating voltage range for the PIC16F610/616 devices?
They operate from 2.0 V up to 5.5 V.
From: MICROCHIP PIC16F610/16HV610 PIC16F616/16HV616 microcontroller handbook
How long does one instruction cycle take?
Each instruction (except jumps) executes in a single cycle of 200 ns.
From: MICROCHIP PIC16F610/16HV610 PIC16F616/16HV616 microcontroller handbook
