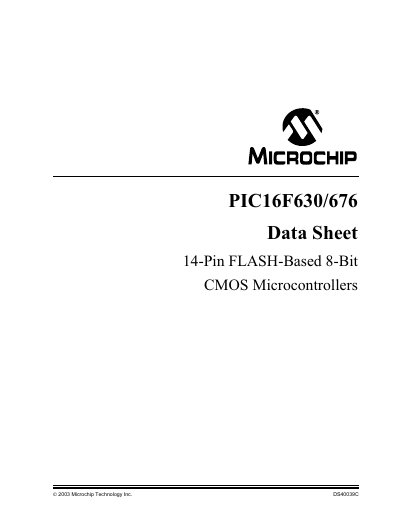

Microchip PIC16F630/676 8-Bit CMOS Microcontroller Data Sheet
This document provides detailed information about the PIC16F630 and PIC16F676 14-pin FLASH-based 8-bit CMOS microcontrollers. The devices feature a high-performance RISC CPU with only 35 instructions to learn, all of which are single-cycle except for branches.
Read onlineMICROCHIP PIC16F630 specifications
| Operating speed | DC - 20 MHz oscillator/clock input |
|---|---|
| Instruction cycle | DC - 200 ns instruction cycle |
| Operating voltage range | 2.0V to 5.5V |
| FLASH endurance | 100,000 write |
| EEPROM endurance | 1,000,000 write |
| FLASH/Data EEPROM Retention | > 40 years |
| Standby Current (typical) | 1 nA @ 2.0V |
| Operating Current (32 kHz, 2.0V) | 8.5 µA |
Source: Microchip PIC16F630/676 8-Bit CMOS Microcontroller Data Sheet
All MICROCHIP PIC16F630 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the difference between PIC16F630 and PIC16F676?
They are identical except that the PIC16F676 has a 10-bit A/D converter.
From: Microchip PIC16F630/676 8-Bit CMOS Microcontroller Data Sheet
What packages are available for these microcontrollers?
The devices come in 14-pin PDIP, SOIC and TSSOP packages.
From: Microchip PIC16F630/676 8-Bit CMOS Microcontroller Data Sheet
What is the standby current of the PIC16F630/676?
The standby current is 1 nA at 2.0 V.
How many I/O pins does the PIC16F630/676 have?
It provides 12 I/O pins, each with independent direction control.
What is the flash memory write endurance for the PIC16F630/676?
The flash memory can endure up to 100,000 write cycles.
From: Microchip PIC16F630/676 CMOS Microcontroller Datasheet
How many write cycles can the EEPROM sustain?
The EEPROM can sustain up to 1,000,000 write cycles.
From: Microchip PIC16F630/676 CMOS Microcontroller Datasheet
