Microchip PIC16F684 Datasheet

This document describes the features and characteristics of Microchip's PIC16F684 14-pin 8-bit CMOS flash microcontroller.

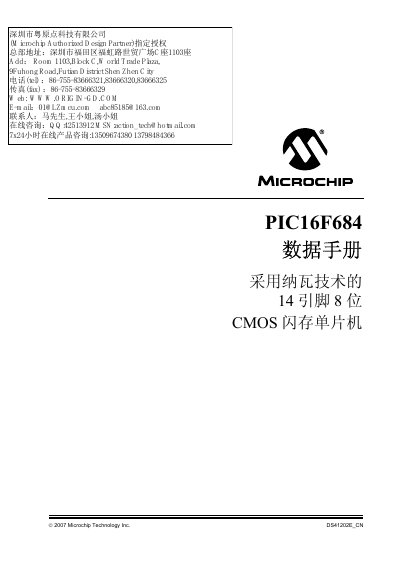

Microchip PIC16F684 Datasheet - cover page
Brand
MICROCHIP
Category
Other device
Document type
Datasheet
Language
Chinese
Pages
192
File format
PDF
File size
3.5 MB
Updated
28 September, 2023
MD5 checksum
02C2D78A2188272D73380D9ADE6F080C

About this manual

This document provides a complete description of the PIC16F684 microcontroller, including its 14‑pin PDIP, SOIC, TSSOP and 16‑pin QFN packages, architecture, instruction set and core CPU features. It outlines the device’s high‑precision internal oscillator, low‑power modes, watchdog timer, brown‑out reset and code‑protection options.

The datasheet is organized into sections covering memory organization, oscillator module, I/O ports, timers, comparator, ADC, EEPROM, enhanced capture/compare/PWM, CPU special functions, electrical characteristics, package information and appendices for revision history and migration guidance. It also lists development support resources and customer service contacts. This manual is written in Chinese.

What's inside

  • Device Overview
  • Memory Organization
  • Oscillator Module
  • I/O Ports
  • Timer0 Module
  • Timer1 Module with Gate
  • Timer2 Module
  • Comparator Module
  • Analog-to-Digital Converter (ADC) Module
  • Electrical Characteristics

Specifications

Operating Voltage Range2.0 V to 5.5 V
Number of I/O Pins12
ADC Resolution10‑bit, 8 channels
Maximum Clock Frequency20 MHz
Standby Current (2.0 V)50 nA

Frequently asked questions

What is the operating voltage range of the PIC16F684?

The PIC16F684 operates from 2.0 V up to 5.5 V.

How many I/O pins are available on the PIC16F684?

The device provides 12 programmable I/O pins.
