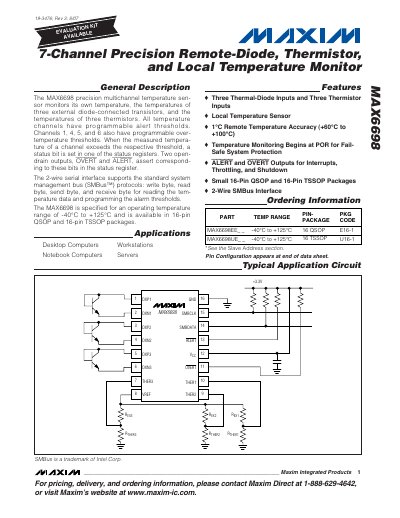

Maxim MAX6698 Temperature Sensor Datasheet
The MAX6698 precision multichannel temperature sensor monitors its own temperature, three external diode‑connected transistors, and three thermistors. All channels have programmable alert thresholds, and channels 1, 4, 5, and 6 also support programmable over‑temperature thresholds. The device communicates via a 2‑wire SMBus‑compatible serial interface and provides two open‑drain outputs (OVERT and ALERT) for interrupt or shutdown signaling.
The sensor operates from –40 °C to +125 °C and is available in 16‑pin QSOP and TSSOP packages. It features low standby current (less than 15 µA) and supports standard SMBus protocols for reading temperature data and programming alarm thresholds. Detailed electrical characteristics, pin descriptions, and timing diagrams are provided for system integration. This manual is written in Chinese.
Maxim MAX6698 specifications
| Operating Temperature Range | -40°C to +125°C |
|---|---|
| Supply Voltage (VCC) | 3.0 V to 5.5 V |
| Standby Supply Current | 30 µA (typical) |
| Alert/OVERT Outputs | Open‑drain |
All Maxim MAX6698 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What communication interface does the MAX6698 use?
It uses a 2‑wire serial interface that supports standard SMBus™ protocols for reading temperature data and programming alarm thresholds.
How does the device signal an over‑temperature condition?
Two open‑drain outputs, OVERT and ALERT, assert when programmed temperature thresholds are exceeded.
