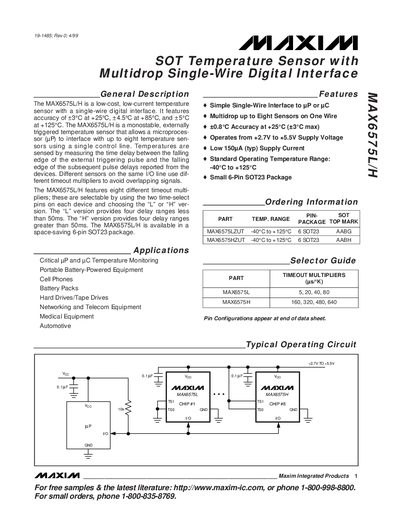

Maxim MAX6575L/H Temperature Sensor Datasheet
The MAX6575L/H is a low‑cost, low‑current temperature sensor that uses a single‑wire digital interface. It offers accuracy of ±0.8 °C at 25 °C (±3 °C max) and can monitor up to eight sensors on one I/O line using selectable timeout multipliers.
The datasheet details electrical characteristics such as a supply range of +2.7 V to +5.5 V, typical supply current of 150 pA, and operation from –40 °C to +125 °C in a 6‑pin SOT‑23 package. Pin functions, timing diagrams, noise considerations, and an 8051 code example for interfacing multiple devices are also included.
Maxim MAX6575L specifications
| Supply Voltage | +2.7 V to +5.5 V |
|---|---|
| Accuracy at 25 °C | ±0.8 °C (±3 °C max) |
| Supply Current | 150 pA typ |
| Package | 6‑Pin SOT23 |
All Maxim MAX6575L documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the supply voltage range for the MAX6575L/H sensor?
It operates from +2.7 V to +5.5 V.
How is the timeout multiplier selected?
By tying the Time‑Select pins TS1 and TSO to either GND or Vpp as shown in Table 1.
