Start here

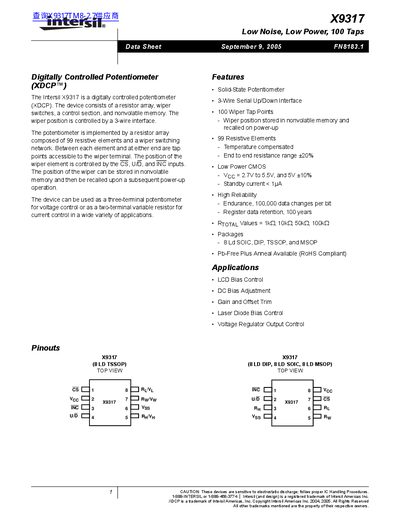

intersil X9317 Low Noise Low Power 100 Taps handbook
The Intersil X9317 is a digitally controlled potentiometer (XDCP) that consists of a resistor array, wiper switches, a control section, and nonvolatile memory. The device features a 3-wire serial up/down interface to control the wiper position, which can be stored in memory and recalled upon power-up. It is implemented with 99 resistive elements and provides 100 accessible tap points.
Read onlineIntersil X9317 specifications
| Wiper Tap Points | 100 |
|---|---|
| Resistive Elements | 99 |
| Standby Current | < 1pA |
| Data Retention | 100 years |
| Endurance | 100,000 data changes per bit |
| Resolution | 1% |
Source: intersil X9317 Low Noise Low Power 100 Taps handbook
All Intersil X9317 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What is the resolution of the X9317?
The resolution of the device is 1%.
How many wiper tap points does the X9317 have?
The device has 100 wiper tap points.
How many wiper tap points does the X9317 have?
The X9317 provides 100 wiper tap points.
From: Intersil X9317 Datasheet
What is the standby current of the X9317?
The standby current is less than 1 pA.
From: Intersil X9317 Datasheet
How many tap positions does the X9317 have?
The X9317 provides 100 wiper tap points.
From: Intersil X9317 Datasheet
Can the wiper position be stored for later use?
Yes, the wiper position is stored in non‑volatile memory and recalled on power‑up.
From: Intersil X9317 Datasheet
