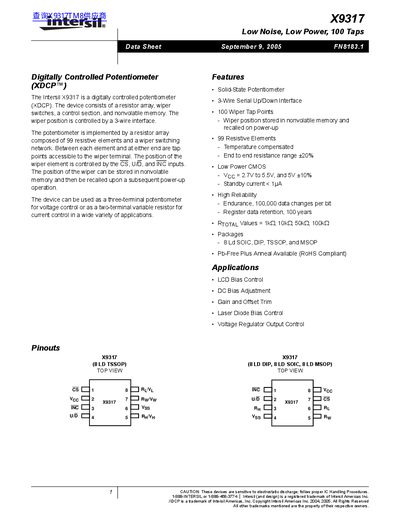

This document is the PDF datasheet for Intersil X9317, which introduces the features and characteristics of the product.
The X9317 is a digitally controlled potentiometer (XDCP) featuring a 99‑element resistor array and a 3‑wire serial interface. It can be used as a three‑terminal potentiometer for voltage control or as a two‑terminal variable resistor for current control.
The datasheet includes sections on features, applications, pinouts, ordering information, electrical specifications (DC and AC), absolute maximum ratings, packaging details, and typical performance curves.
| Wiper tap points | 100 |
|---|---|
| Resistive elements | 99 |
| Standby current | < 1 pA |
| Endurance (data changes per bit) | 100,000 |
| Data retention | 100 years |
| Supply voltage (Voc) | 2.7 V to 5.5 V |
| Rtotal values | 1 kΩ, 10 kΩ, 50 kΩ, 100 kΩ |
The X9317 provides 100 wiper tap points.
The standby current is less than 1 pA.
Data is retained for 100 years.
Typical variants operate from –40 °C to +85 °C, while some parts are rated 0 °C to 70 °C.
