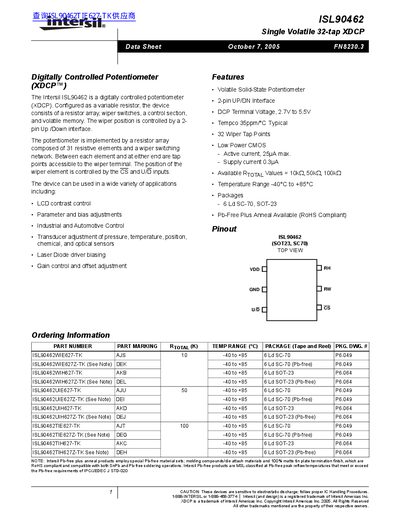

Intersil ISL90462 Digitally Controlled Potentiometer Datasheet
The Intersil ISL90462 is a single volatile 32-tap XDCP configured as a variable resistor. It consists of a resistor array composed of 31 resistive elements and a wiper switching network, controlled by a 2-pin Up/Down interface.
Read onlineIntersil ISL90462 specifications
| Total Resistance (Rtot) | 10kΩ, 50kΩ, or 100kΩ |
|---|---|
| Supply Voltage (VDD) | 2.7V to 5.5V |
| Operating Temperature Range | -40°C to +85°C |
| Active Current (Icc) | 25µA max. |
| Standby Supply Current | 0.3µA |
| Number of Wiper Tap Points | 32 |
| Temperature Coefficient | 35ppm/°C Typical |
Source: Intersil ISL90462 Digitally Controlled Potentiometer Datasheet
All Intersil ISL90462 documents by type
Ratings, dimensions and ordering codes, for selection and design work.
Questions answered in these manuals
What are the available total resistance values for the ISL90462?
The device is available in three versions with total resistance values of 10kΩ, 50kΩ, and 100kΩ.
From: Intersil ISL90462 Digitally Controlled Potentiometer Datasheet
What is the recommended operating temperature range?
The device operates within a temperature range of -40°C to +85°C under industrial conditions.
From: Intersil ISL90462 Digitally Controlled Potentiometer Datasheet
What interface controls the wiper position?
The wiper is controlled by a 2‑pin Up/Down interface (UP/DOWN and CS inputs).
From: Intersil ISL90462 Digitally Controlled Potentiometer Data Sheet
How many resistive elements are in the array?
The array consists of 31 resistive elements.
From: Intersil ISL90462 Digitally Controlled Potentiometer Data Sheet
